Triumph Laser Rust Remover 3000W Laser Rust Removal Machine Continuous Hand-held Fiber Laser Cleaning Machine for Metals with Rust Paint Oil Dirt Stains Coating Remover Laser Cleaner Machine
Couldn't load pickup availability

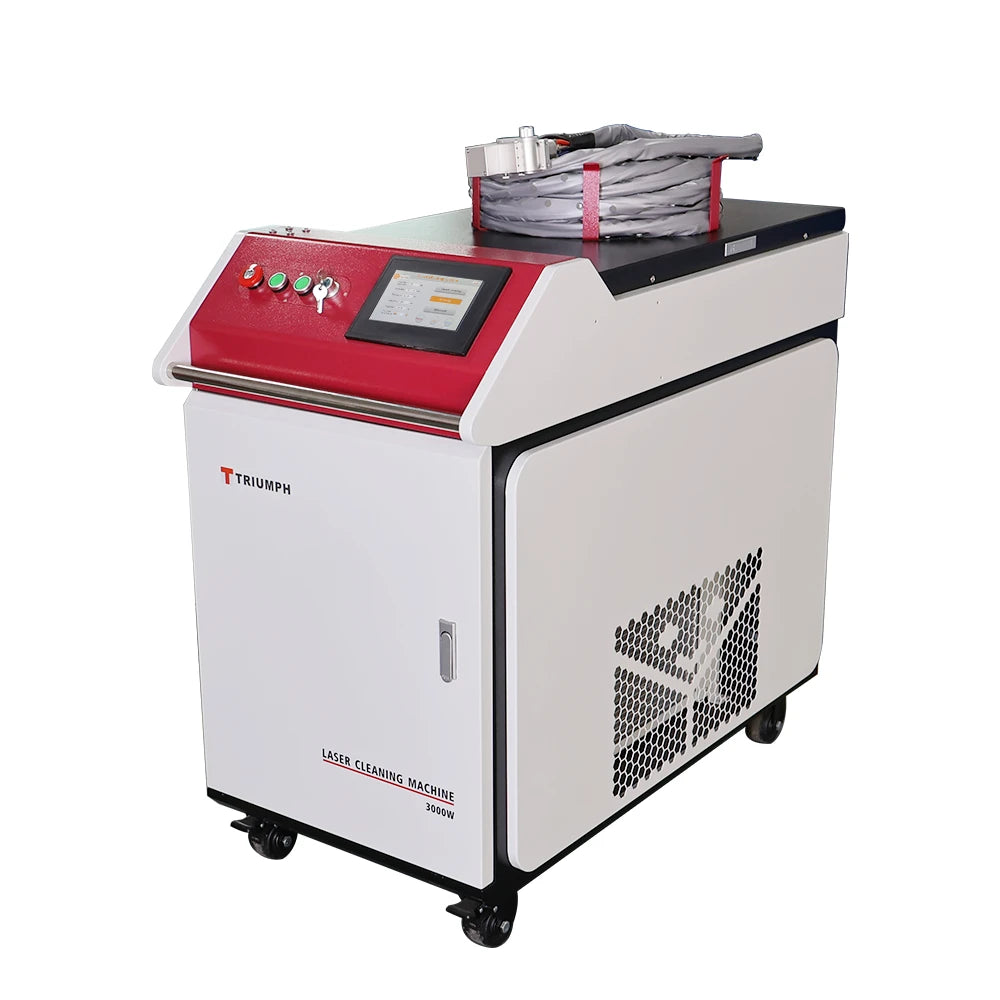

Industrial Laser Cleaning Machine For Rust Removal
Experience ultra-efficient surface preparation with our industrial-grade 3000W Continuous Wave (CW) Fiber Laser Cleaning Machine. Engineered to swiftly eliminate heavy rust, thick oxide layers, oil, paint, and coarse contaminants from large steel or iron structures, this high-power system ensures rapid cleaning to maximize industrial workshop productivity.
Laser cleaning machine, a form of laser cleaning, proves to be a highly efficient method for cleansing metal components. Utilizing a fiber laser cleaning system, it is possible to swiftly and thoroughly eliminate rust and other impurities without causing harm to the underlying metal.
Laser rust removal is a great alternative to manual and chemical cleaning methods since rust is removed with greater precision and lower recurring costs. It’s also a great way to reduce your environmental impact.
Laser rust removal is a non-contact method that continuously removes rust while drastically lowering maintenance costs.

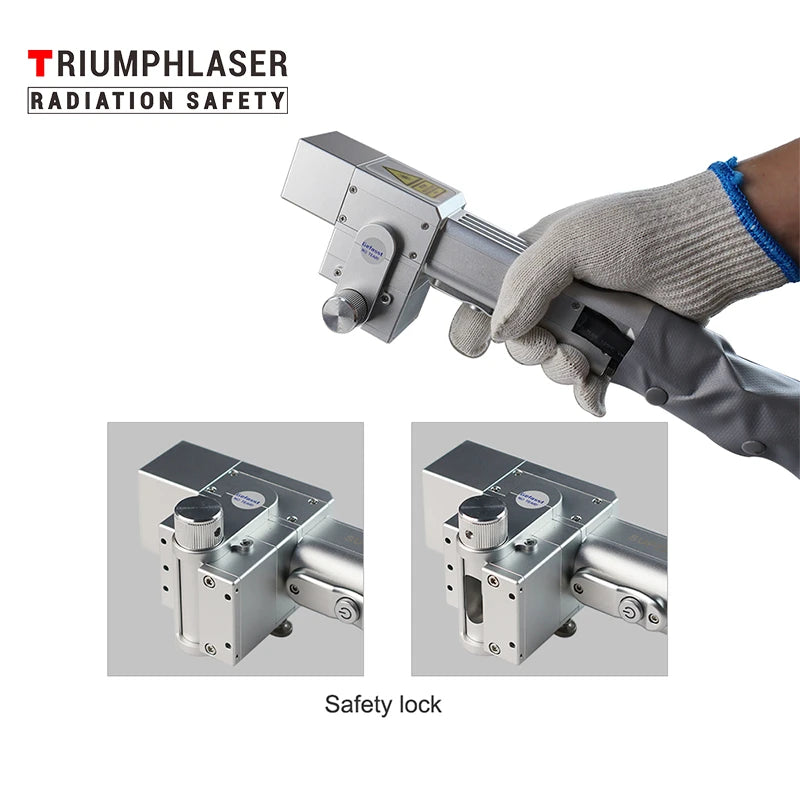

Laser Cleaning Head
New optical path design, the maximum cleaning width up to 300mm, the maximum working distance up to 800mm, cleaning face 0 arc.
Multi-Functional Laser Cleaning Applications
Technical Parameters
| Model | TR-HLC |
| Laser Power | 3000W |
| Wavelength | 1080nm ± 10 nm |
| Mode of Operation | CW/Modulated |
| Power Tunability | 10 to 100% |
| Laser Beam Quality, BPP | ≤1.5 mm x mrad (50μm QBH) |
| Modulation Frequency | ≤20 kHz |
| Preview Red Light Power | 150 μW |
| Interface | QBH (LOC) |
| Length | 10m |
| Bending Radius | 200mm |
| Supply Voltage | 380VAC (-15% to +10%) three-phase |
| Cooling System | Industrial Chiller |
| Operating Temperature | +10 to +40°C |
| Storage Temperature | -10 to +60°C |
| Collimating Focal Length | 60nm |
| Focal Length | 400mm/800mm |
| Maximum Air Pressure | 15Bar |
| Scan Width | 0-300mm |
| Machine Size | 125×67×86cm (49.2″×26.4″×33.9″) |
| Gross Weight | 260kg |
Packing List
Frequently Asked Questions
What is the power of this laser welding machine?
The power of the laser is 3000W.
Is it easy for beginners?
Yes. The machine features:
- An intuitive touchscreen control system
- Preset welding parameters
- User-friendly interface
- Minimal training requirements
Most operators can become proficient within a few hours.
Do you support worldwide shipping?
Yes, we ship globally and provide overseas warehouse delivery.
Does the machine support multiple functions?
Yes, the machine supports 4-in-1 functionality, including:
- Laser Welding
- Laser Cleaning
- Laser Cutting
- Weld Seam Cleaning
What are the power and voltage requirements?
- Power Supply: Three-phase 380V, 50/60Hz
- Total Power Consumption: Approximately 10–12kW
What cooling system does the machine use?
Water cooling.
What shielding gases are recommended?
Common shielding gases include:
- Nitrogen (N&sub2;): Clean and oxidation-free welds
- Argon (Ar): High-quality and stable welding
- Compressed Air: Cost-effective for certain applications
What is the expected lifespan of the laser source?
The fiber laser source has a service life of up to 100,000 hours, ensuring long-term reliability and low maintenance costs.
How thick a material can it weld?
Taking stainless steel as an example, it can weld up to 8mm thick.
What warranty do you offer?
The machine comes with a 2-year warranty.
Consumable parts such as laser protective lenses and focusing lenses are not covered.
