Handheld Laser Cleaning Head SUP22C
Couldn't load pickup availability

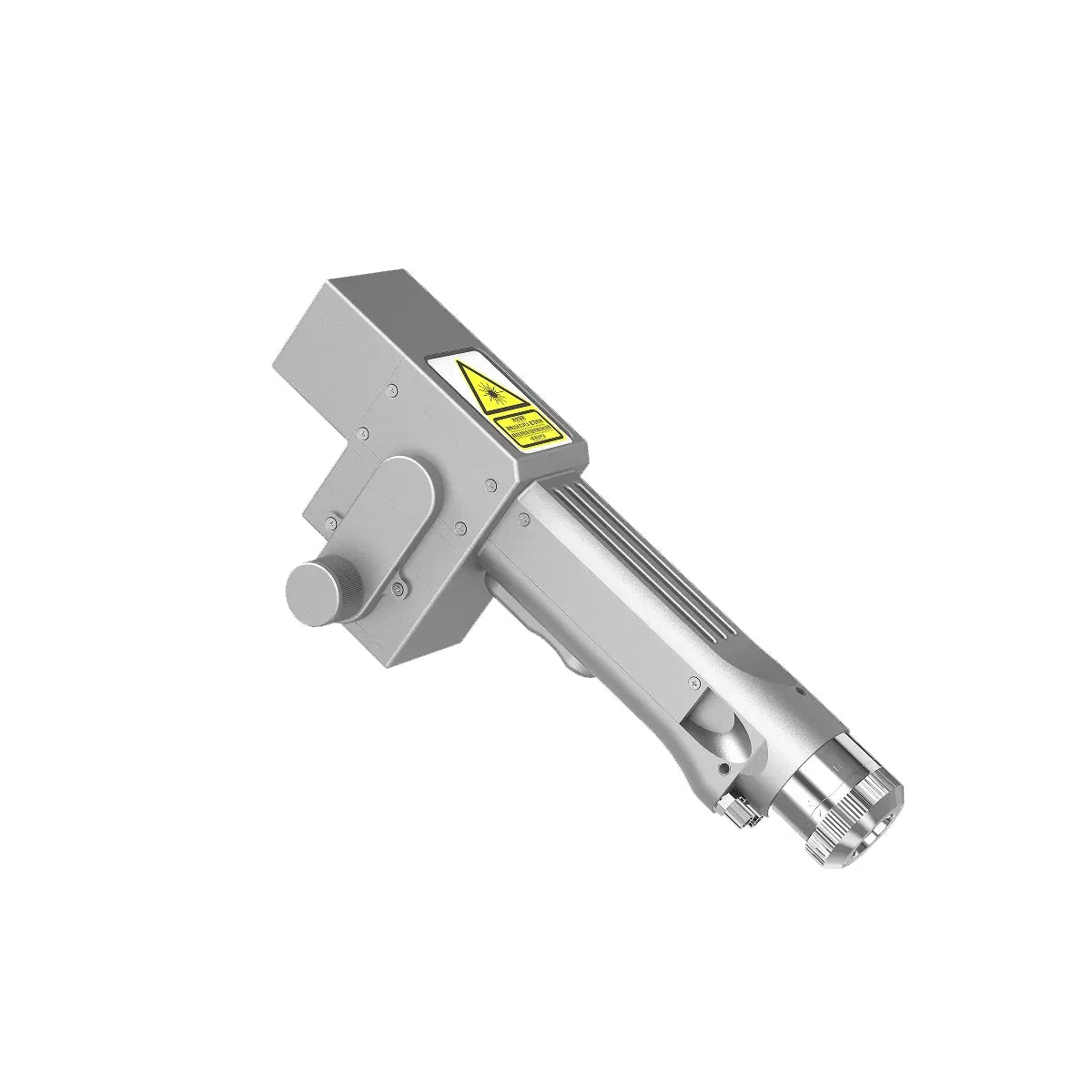

Handheld Fiber Laser Cleaning Head SUP22C
Engineered for high-efficiency rust, paint, and oxide layer removal, the SUP22C handheld laser cleaning head adapts seamlessly to various major fiber laser source brands. Featuring an optimized optical system and integrated water-cooling layout, this lightweight 1.0kg gun head ensures continuous, long-term stability at operating power levels up to 3000W.
Key Performance Features
Compact & Self-Developed System
Utilizes a proprietary control system equipped with multiple built-in safety alarms, offering a lightweight body, smooth handling, and an easy learning curve for operators.
Real-Time Status Monitoring
All operating parameters are visible in real time. Continuous system diagnostics allow operators to prevent potential operational issues and troubleshoot quickly.
Superior Cleaning Consistency
Precise control over nozzle air pressure, mirror positions, and process parameters guarantees repeatable cleaning quality and reduces skilled labor dependencies.
Ultra-Wide 300mm Line Cleaning
Supports a wide linear spot adjustment range from 0 to 300 mm, allowing rapid coverage over large metal surface areas, weld seams, and complex geometries.
Operating Environment & Technical Parameters
| Specification Parameter | Technical Details |
|---|---|
| Model Name | SUP22C Handheld Laser Cleaning Head |
| Supply Voltage | 220V ±10% AC, 50/60Hz |
| Applicable Laser Power | ≤ 3000W (Continuous operation at 2000W) |
| Applicable Wavelength | 1070 nm (±10 nm) |
| Spot Adjustment Line Range | Line 0 – 300 mm |
| Cooling Method | Water-Cooling |
| Maximum Gas Pressure Support | 15 bar |
| Collimation Lens Spec | D20 * 3.5 mm (F50) |
| Focus Lens Spec | F400 / F800 |
| Reflection Mirror Spec | 20 * 15.2 mm (T1.6) |
| Protective Glass Spec | D30 * 5 mm |
| Working Temperature | 10°C – 40°C |
| Working Humidity | < 70% RH |
| Head Net Weight | 1.0 kg |
Important Wiring Selection Note: This SUP22C laser cleaning head is available with two types of control wiring ports: Aviation Plugs and Terminal Connectors. Please confirm your existing machine system's connector type prior to purchase.
Safety Guidelines & Frequently Asked Questions
Important Operation & Safety Precautions
- Grounding: Ensure the equipment has reliable electrical grounding before powering on.
- Dust Prevention: Carefully inspect the fiber output head before connecting to avoid optical contamination. Clean optical faces using specialized lens tissue.
- Protective Lens Replacement: Maintain a clean, dust-free environment when replacing protective windows (D30*5) to protect inner optics.

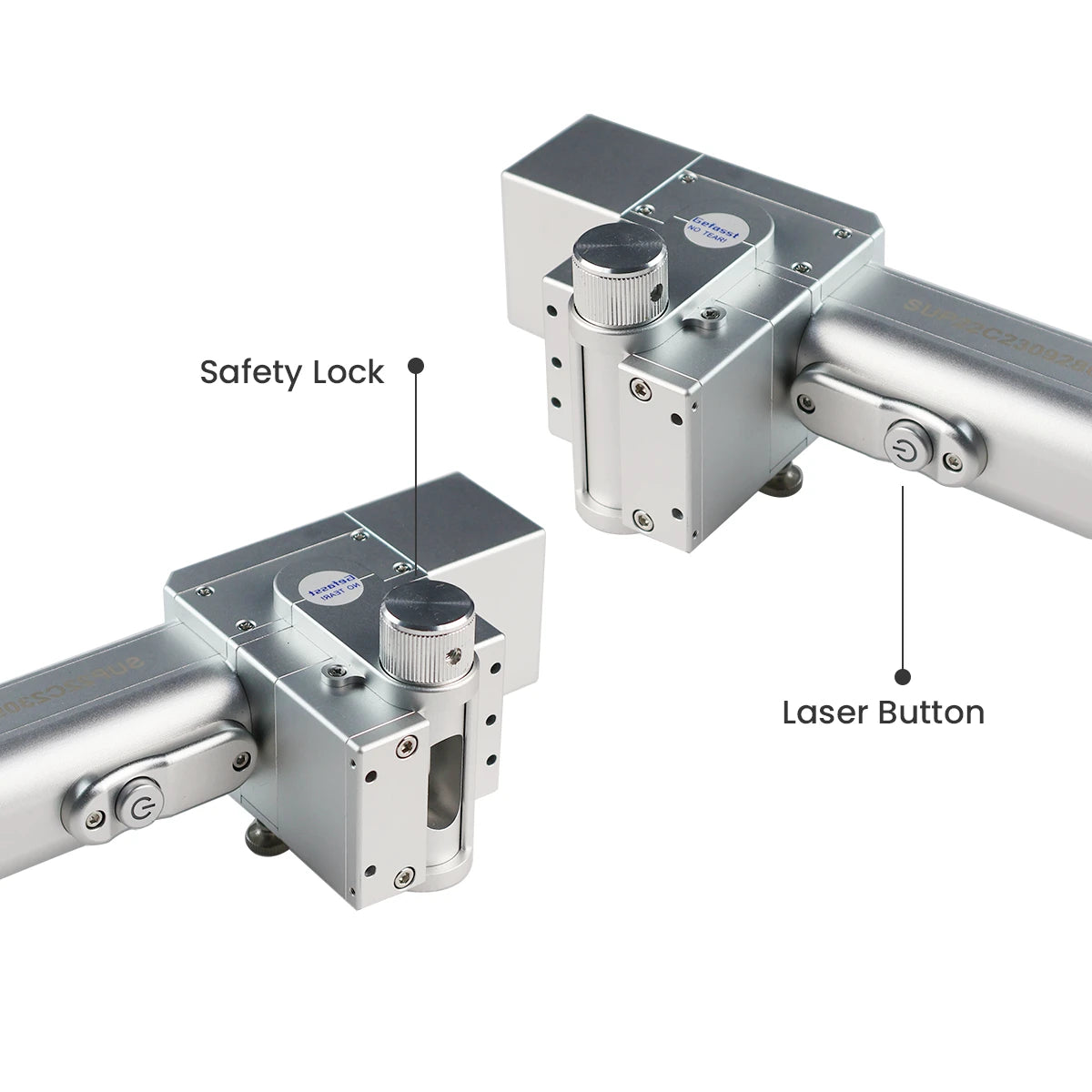

- Red Light Alignment Check: Do NOT trigger laser emission if the red aiming laser is not clearly visible during initial setup.
Is this cleaning head compatible with my existing fiber laser generator?
Yes. The SUP22C cleaning head is universally adaptable to standard fiber laser sources operating at 1070nm (such as Raycus, Maxphotonics, IPG, JPT, etc.) with power outputs up to 3000W.
What protective lens size does the SUP22C head require?
The SUP22C laser cleaning head uses standard D30*5 mm protective glasses. Keeping clean protective glasses installed is essential to extend the life of internal collimation and focusing optics.
