Automatic Fiber Laser Marking Machine for Nameplates and Cards

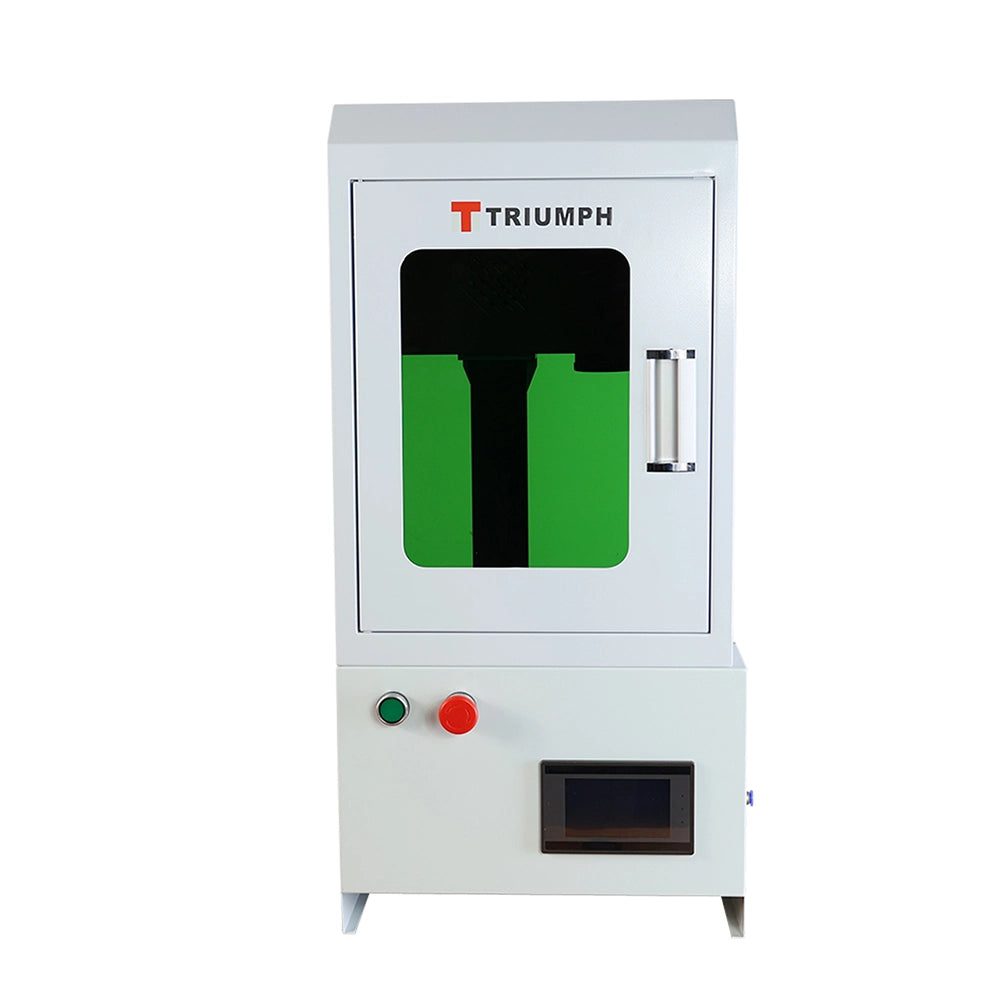

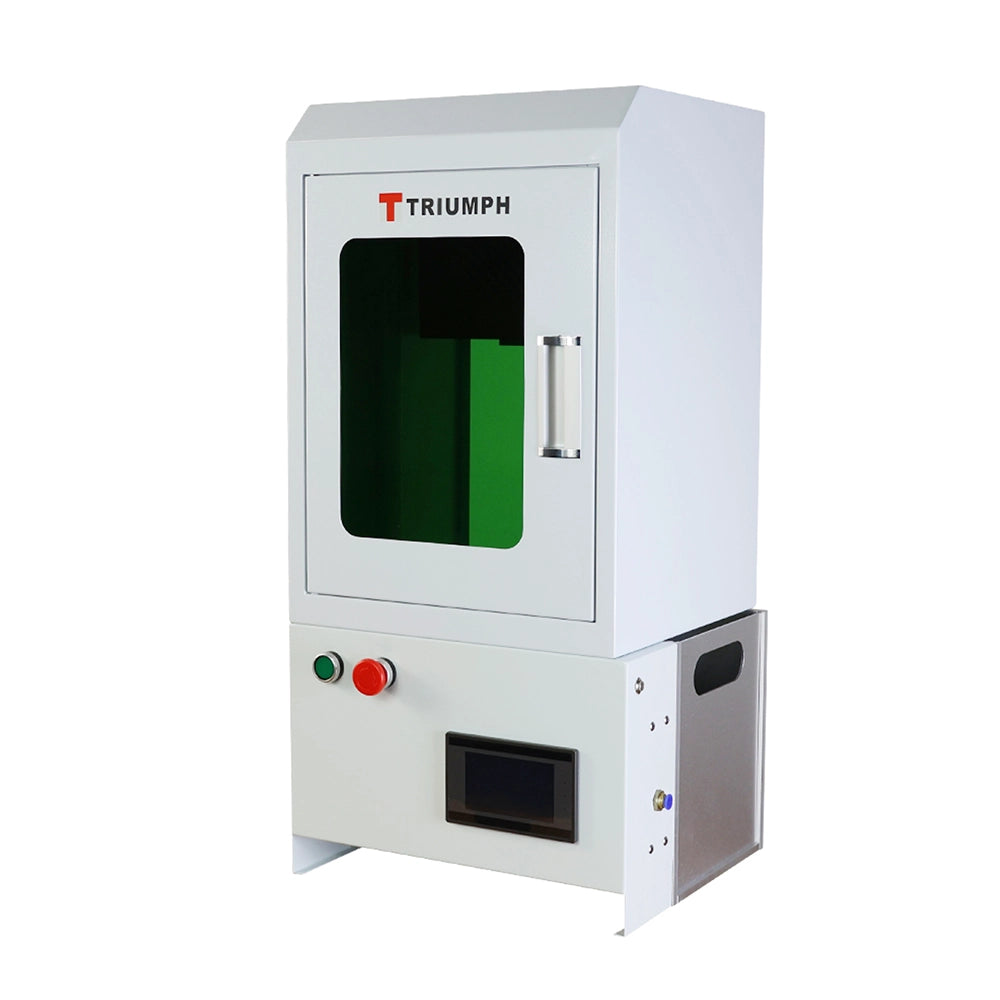

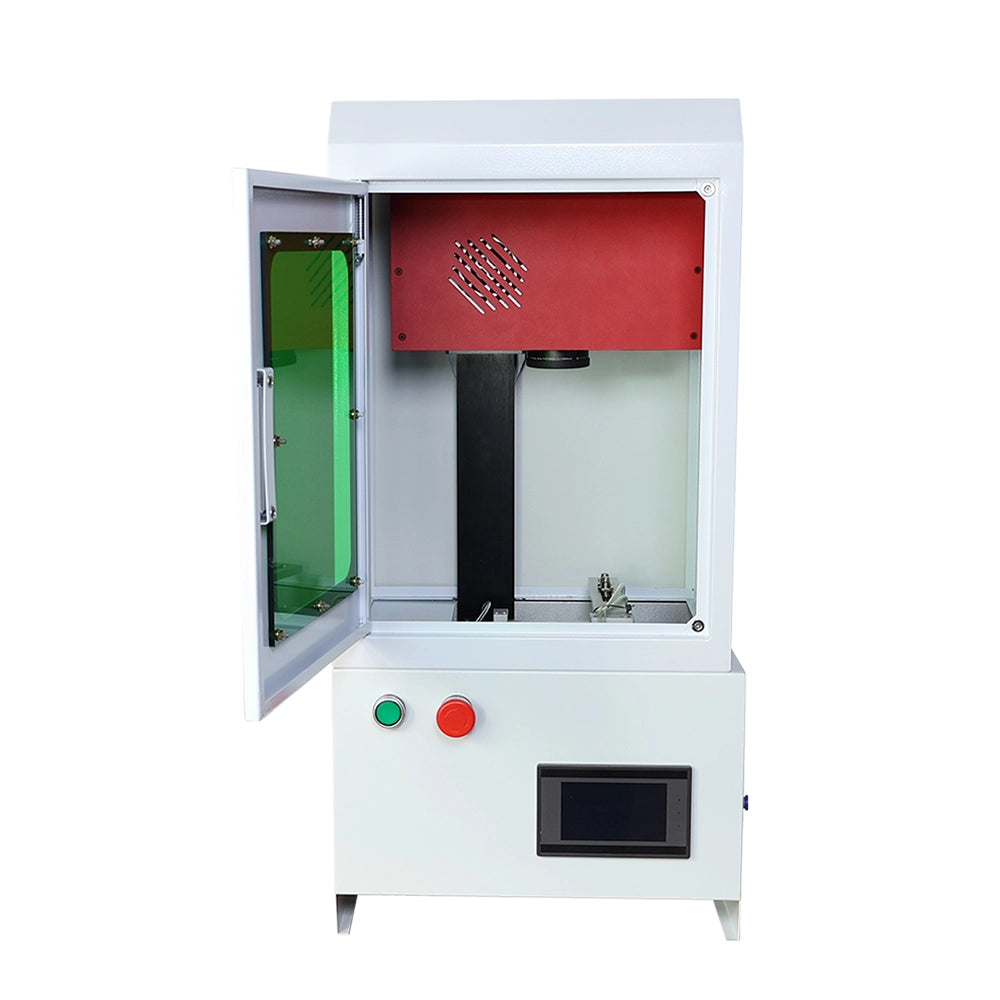

The automatic fiber laser marking machine is specially designed for high-volume mass production of industrial nameplates and metal cards. Integrating an advanced mechanical feeding architecture into a unified workspace, it features automatic loading, precision pneumatics positioning, high-speed fiber marking, and organized unloading. This fully automated cycle enables highly efficient, precise, and completely hands-free operation for demanding factory floors.
By removing human intervention from repetitive cycles, this system greatly improves productivity, reduces active labor costs, and ensures consistent marking quality — making it an ideal asset for factories requiring batch and continuous production
Machine Details
How Does the Machine Work?
Key Performance Features
Industrial-Grade Reliability
Built upon a heavy-duty rigid frame structure engineered to withstand long-cycle vibration. Guarantees structural calibration and robust alignment accuracy under harsh, fast-paced factory environments.
Hands-Free Automation
Equipped with a custom automated loading elevator and specialized guide rails optimized for processing extensive stacks of raw card stock and standard industrial identification tags without a break.
Substrate Adaptability Note
Utilizing industrial 1064nm solid-state technology, this machine is highly optimized for all metals (steel, aluminum, brass) and engineering plastics. It is NOT suitable for organic non-metals like wood, glass, or clear acrylic.
Intelligent Dynamic Sorting
Features an automated smart unloading tray that stacks perfectly engraved plates in sequence immediately post-marking, avoiding scratching, part collisions, or manual collecting bottlenecks.
Diverse Component Support
Highly modular layout that easily adjusts to support varying layout dimensions, geometric thicknesses, and custom industrial nameplate specifications up to 90x120mm.
Comprehensive Data Processing
Fully capable of generating instant sequential serial numbers, dynamic barcodes, standard industrial QR matrices, corporate branding logos, complex vector graphics, and intricate micro-text.
Primary Operational Capabilities
- Automatic feeding system for cards and nameplates
- Automatic unloading after marking cycles
- Supports different card sizes and specifications
- High-speed fiber laser marking technology
- Clear, permanent, and wear-resistant marking results
- Designed for 24/7 continuous production
- Supports marking of QR codes, barcodes, serial numbers, logos, graphics
Technical Parameters
| Model | TR-F20M |
| Laser Power | 20W |
| Laser Type | Fiber Laser (Integrated Automated Assembly Design) |
| Laser Wavelength | 1064nm |
| Maximum Card Size | 90×120mm |
| Laser Frequency | 30–60kHz |
| Max. Engraving Depth | 0.015–0.5mm |
| Max. Engraving Speed | 10000mm/s |
| Positioning Accuracy | ±0.1μm |
| Repeatability | <0.001mm |
| Software Architecture | BslApp |
| Compatible Operating Systems | Windows XP / 7 / 10 / 11 |
| Minimum Line Width | 0.02–0.04mm |
| Cooling Method | Internal Air Cooling System |
| Supported Files | .ai, .bmp, .svg, .dx, .dxf, .gif, .jpg, etc. |
| Laser Life | 100,000 Hours |
| Power Consumption | Max. 250W (Highly Energy Efficient) |
| Warranty Coverage | 2 Years Factory Warranty |
| Package Weight | 35kg (77.1 lbs) |
| Package Size | 80×42×40cm (31.5"×16.5"×15.7") |
| Power Requirements | AC 220V/50Hz Or AC 110V/60Hz (Configured via destination country) |
Frequently Asked Questions
How does the automatic loading and unloading mechanism function?

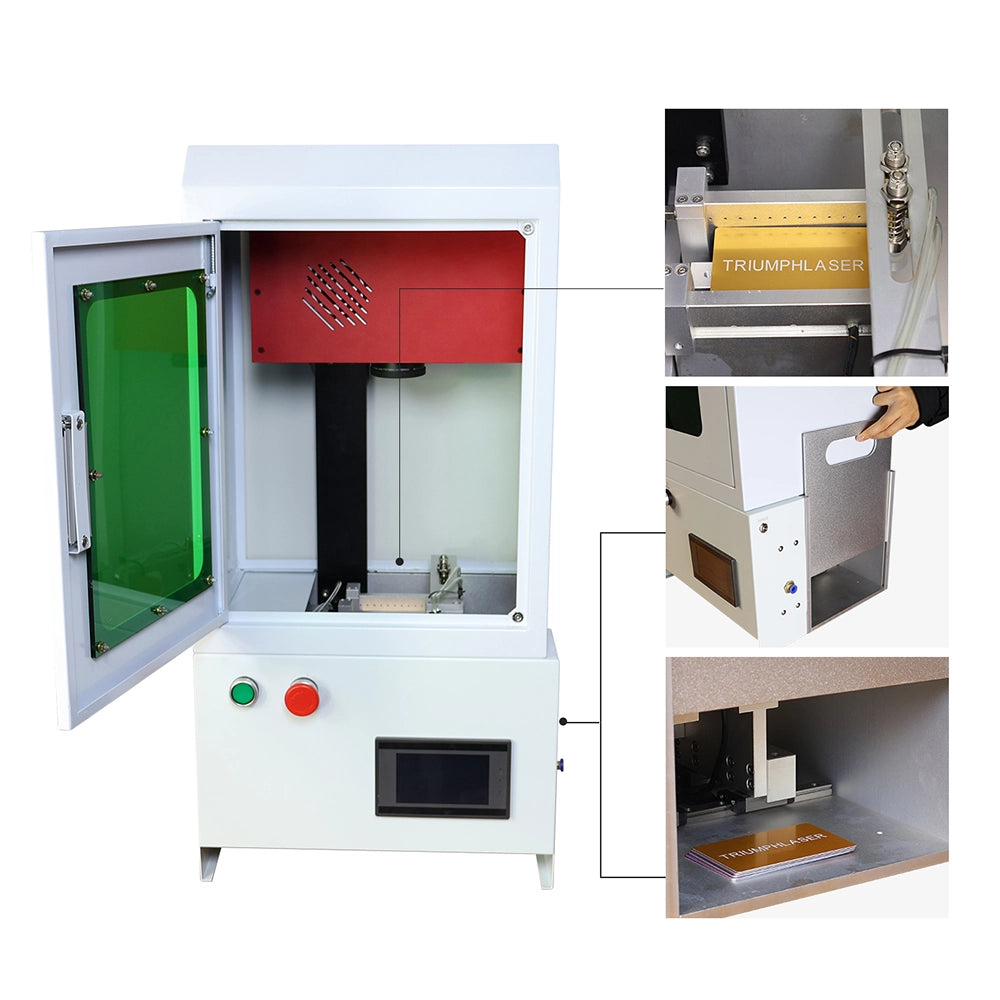

The system features an integrated motorized elevator hopper. You stack your raw nameplates or cards inside the feed magazine; the machine automatically lifts, feeds, and clamps each card via pneumatic micro-positioning before marking. Once the laser cycle finishes, it automatically pushes the completed item into a matching collection tray, allowing completely hands-free continuous batch production.
Can this automatic system engrave organic non-metal materials like wood, paper, or plastic?
This system uses a 1064nm wavelength fiber laser. It is highly optimized for marking all industrial metals (stainless steel, brass, anodized aluminum) and certain dense hard plastics (ABS, PVC). However, it cannot process organic materials such as wood, leather, or transparent glass, as these materials do not absorb fiber laser wavelengths.
Which North American countries are supported by local shipping centers?
We provide localized warehouse delivery for customers across the United States, Canada, and Mexico. Orders are shipped from our nearest regional hub to ensure fast door-to-door transit, with all customs clearings, brokerage fees, and import taxes fully taken care of.
What dimensions of nameplates can be stacked inside the automatic feeder?
The standard mechanical positioning tray supports a maximum card dimension of 90x120mm. The guide boundaries are easily adjustable to secure smaller tags or standard business card layouts down to various micro-sizes smoothly.
