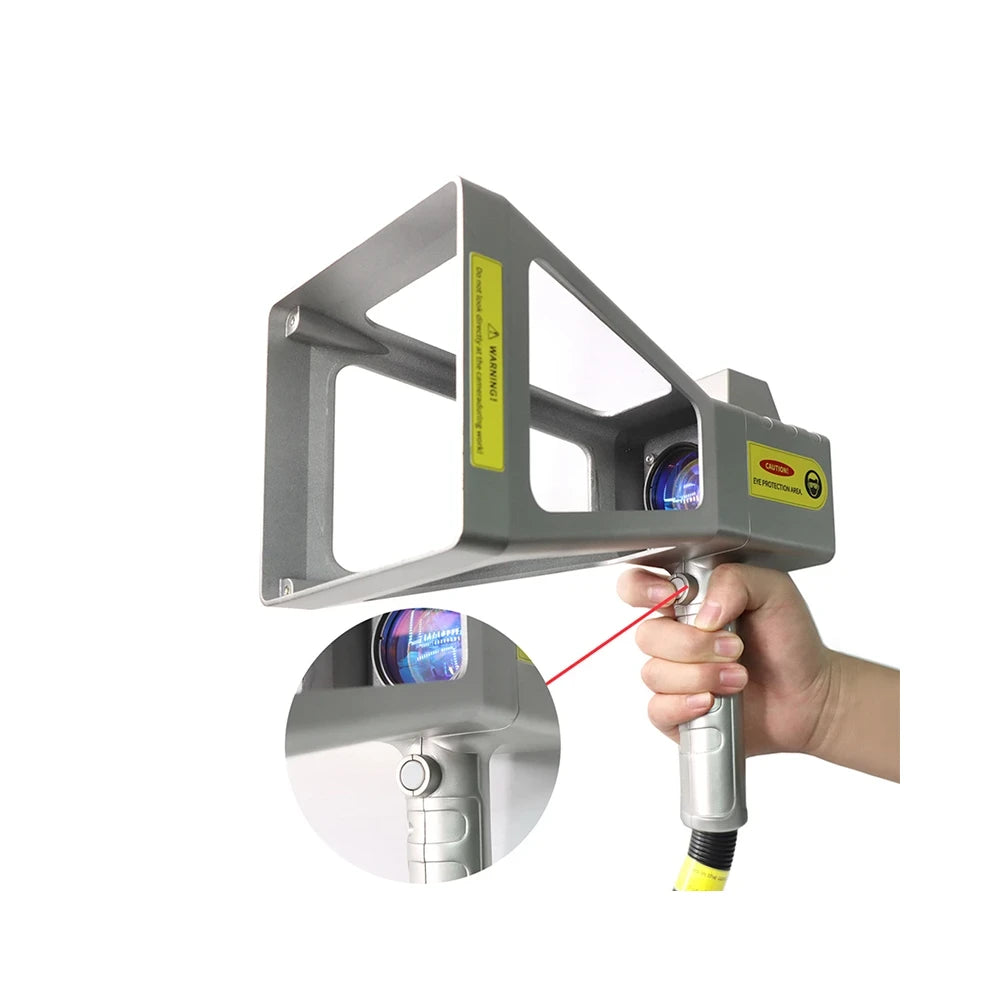

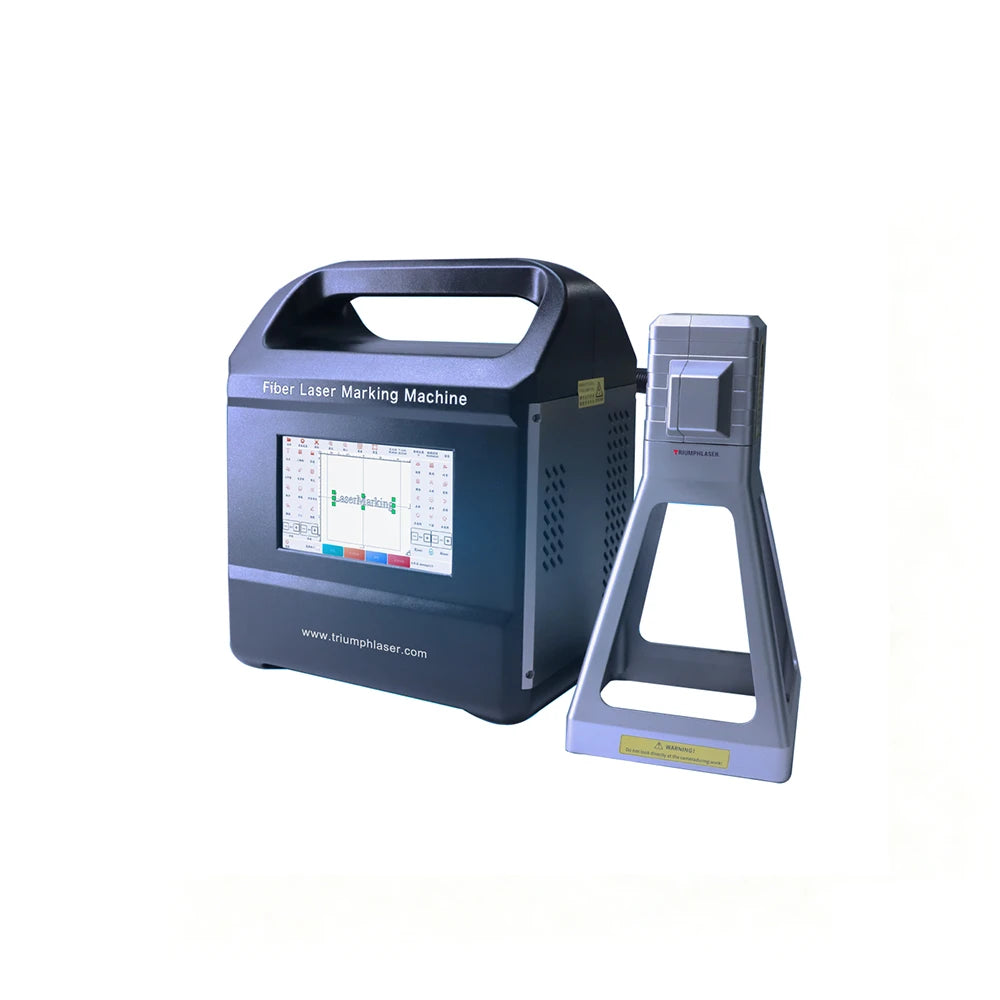

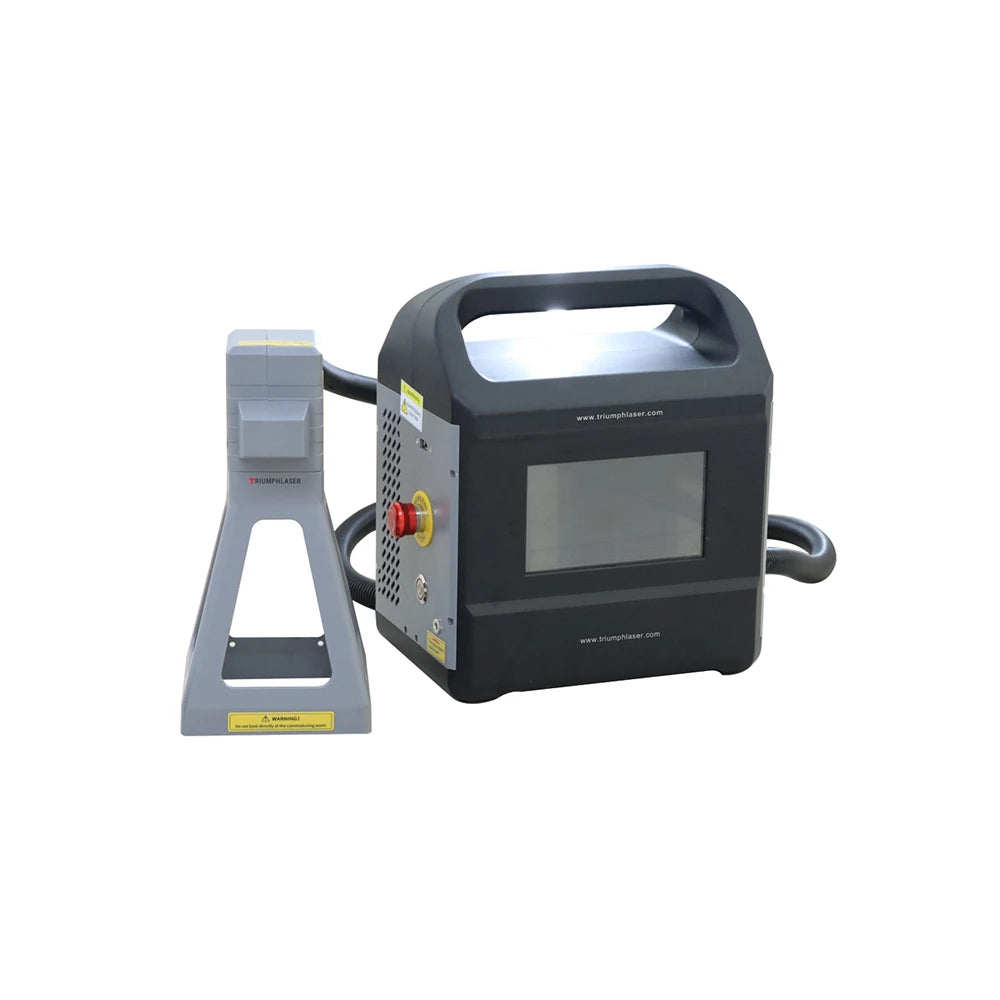

Mini Handheld Laser Marking Machine
Couldn't load pickup availability
Technical Parameters
|
Product |
Lithium battery style |
Power supply style |
|
Model |
H20B/H30B |
H20M/H30M |
|
Machine material |
Engineering plastic |
|
|
Laser type |
Optical Fiber Laser Generator |
|
|
Laser power |
20W/30W |
|
|
Laser wavelength |
1064nm |
|
|
Maximum pulse energy |
0.7mJ/1mJ |
|
|
Frequency adjustable range |
27-170kHz |
|
|
Print way |
High-precision two-dimensional scanning mode |
|
|
Scaling speed |
≤7000mm/s |
|
|
Operation interface |
Built-in 7-inch touchscreen， Linux operating system |
|
|
Cooling method |
Built-in air cooling |
|
|
Type of marking line |
lattice and vector all-in-one machine(both lattice and vector) |
|
|
Reflector size |
Standard standard：10mm |
|
|
Scope of marking |
100mm*100mm |
|
|
Location mode |
Red light positioning |
|
|
Number of scaled characters |
Any row within the marking range |
|
|
Printout rate |
600 Character/second(specific speed is related to product material， print content) |
|
|
Language |
Simplified Chinese， English， Korean， German， Arabic numerals， ect |
|
|
File format |
png、jpg、bmp、dxf、plt、svg |
|
|
Barcode/QR code |
CODE 25， CODE 39， CODE 49， CODE 93， CODE 126， CODE 128，EAN 13， EAN 128， PDF 417， COD BAR， UP CA， UP CA_CHK，UP CE_CHK.Data Matrix.QR Code etal |
|
|
Source |
220V/110V |
|
|
Maximum power consumption |
20W：120W/ 30W：150W |
|
|
Machine net weight |
6KG |
8.4KG |
|
Full power Continuous working hours |
6-8 hours(lithium battery) |
|
|
Adapt to the temperature |
0-40℃ |
|
|
Relative humidity of environment |
30-85RH(no-condensation) |
|
|
Appearance size |
330mm*280mm*200mm |
|
|
Type of marking |
QR code， barcode， Chinese， English， date， logo， pattern， ect |
|
