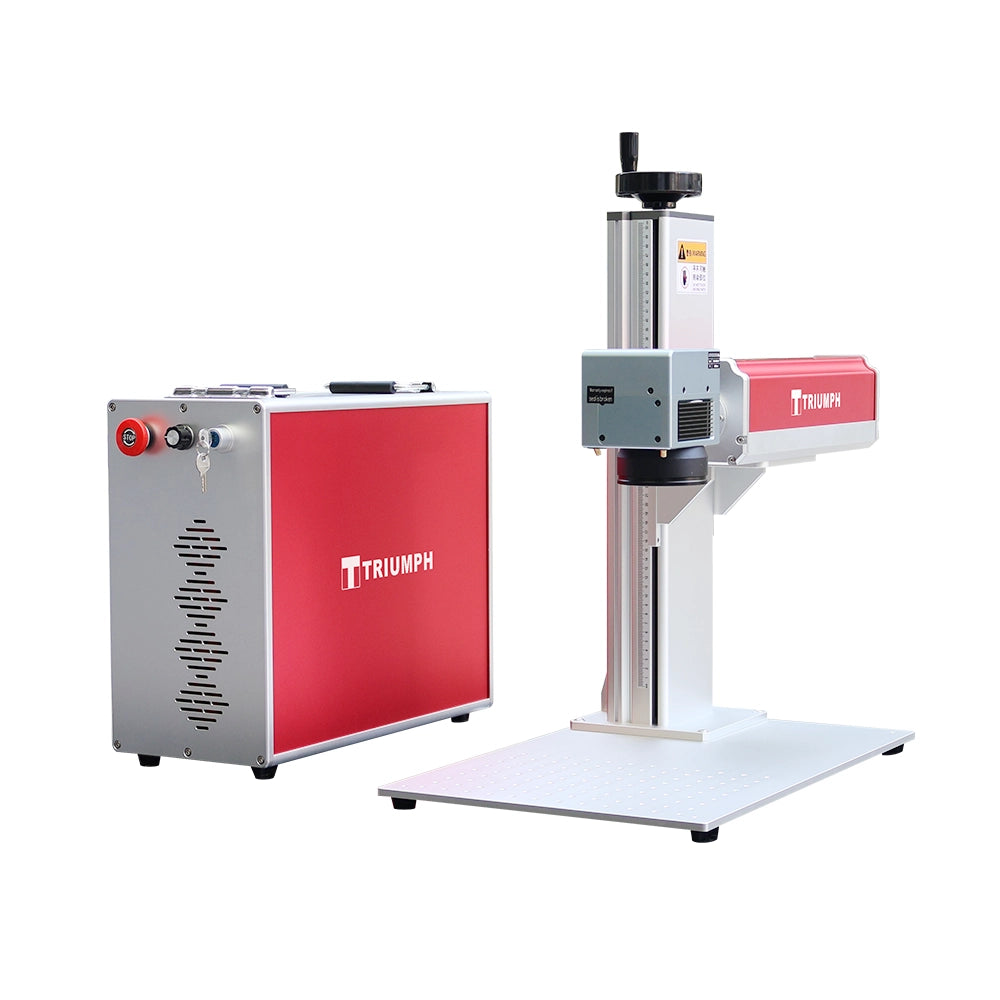

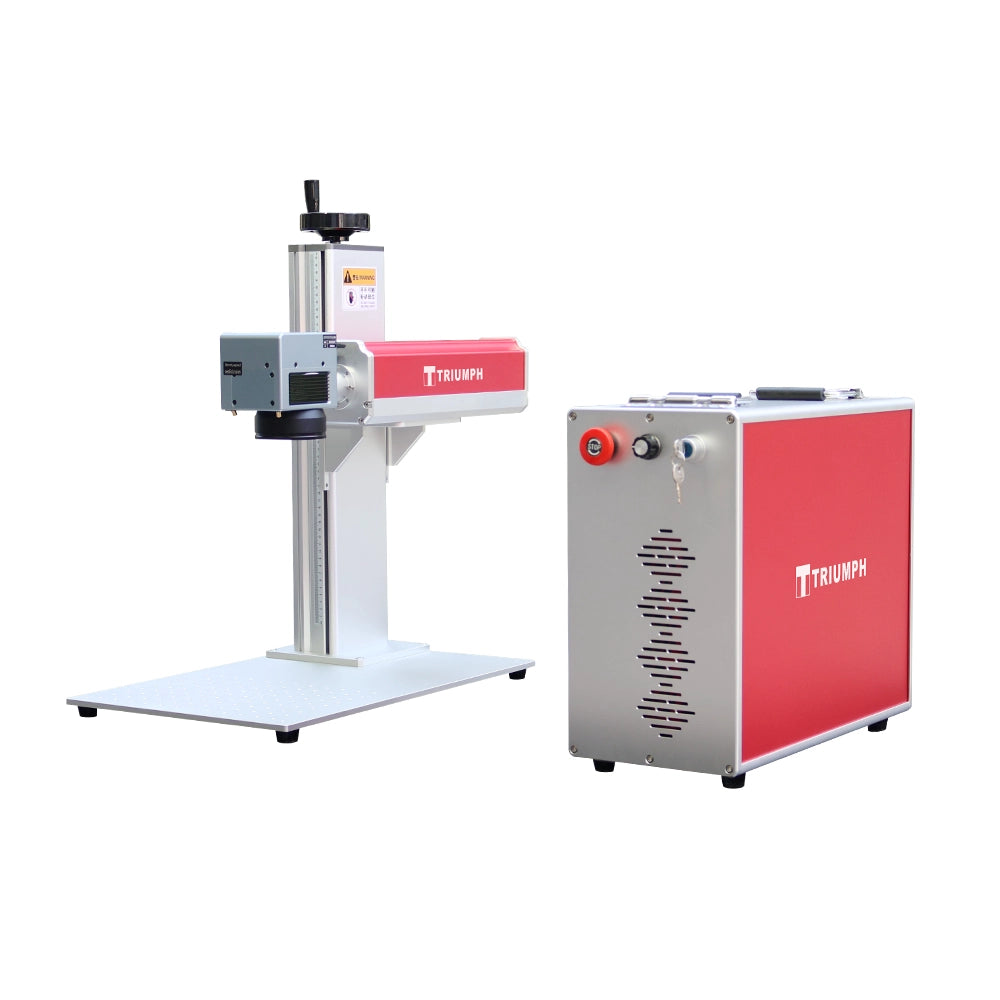

High-Efficiency 60W MOPA Fiber Laser Marking Machine
The 60W MOPA fiber laser marking machine is engineered for industrial applications demanding superior precision, increased speed, and enhanced material versatility compared to traditional Q-switched fiber lasers. Featuring an advanced adjustable pulse width system and a robust high-frequency 60W laser source, this machine consistently achieves cleaner engraving edges, high-contrast rich color results, faster production outputs, and stable performance for 24/7 manufacturing operations.
MOPA Laser VS Q-Switched Fiber Laser
More Control • More Materials • More Possibilities
| Feature | Q-Switched Laser | MOPA Laser |
|---|---|---|
| Pulse width | Fixed | Adjustable 2–500 ns |
| Color marking | No | Yes (On Stainless Steel) |
| Black on anodized aluminum | Not ideal | Perfect, deep black |
| Plastic marking | Easy to burn or melt | Clean, sharp, low heat input |
| Fine marking (micro text) | Limited | Ultra-fine, high contrast |
| Surface smoothness | Easy to get rough or burn | Smooth finishes, no burning |
Product Demonstration Videos
Technical Parameters
| Model | TR-F60M |
| Laser Power | MOPA 60W |
| Working Area | 110X110mm and 175X175mm |
| Laser Wavelength | 1064nm |
| Pulse Repetition Rate Range | 1-4000KHz |
| Beam Quality | < 1.5M² |
| Maximum Pulse Energy | 2mJ |
| Cooling Method | Air Cooled |
| Emission Bandwidth @3dB | < 15nm |
| Output Beam Diameter | 7.0 ± 1.0mm |
| Laser Module Life | >100,000 hours |
| Positioning Accuracy | ±0.1μm |
| Software | Ezcad Support Lightburn |
| Compatible Operating Systems | Windows XP, Vista, 7, 8, 10, 11 |
| Supported Files | .ai, .bmp, .dx, .dxf, .gif, .jpg |
| Warranty | 2 Years |
| Package Weight | 60kgs |

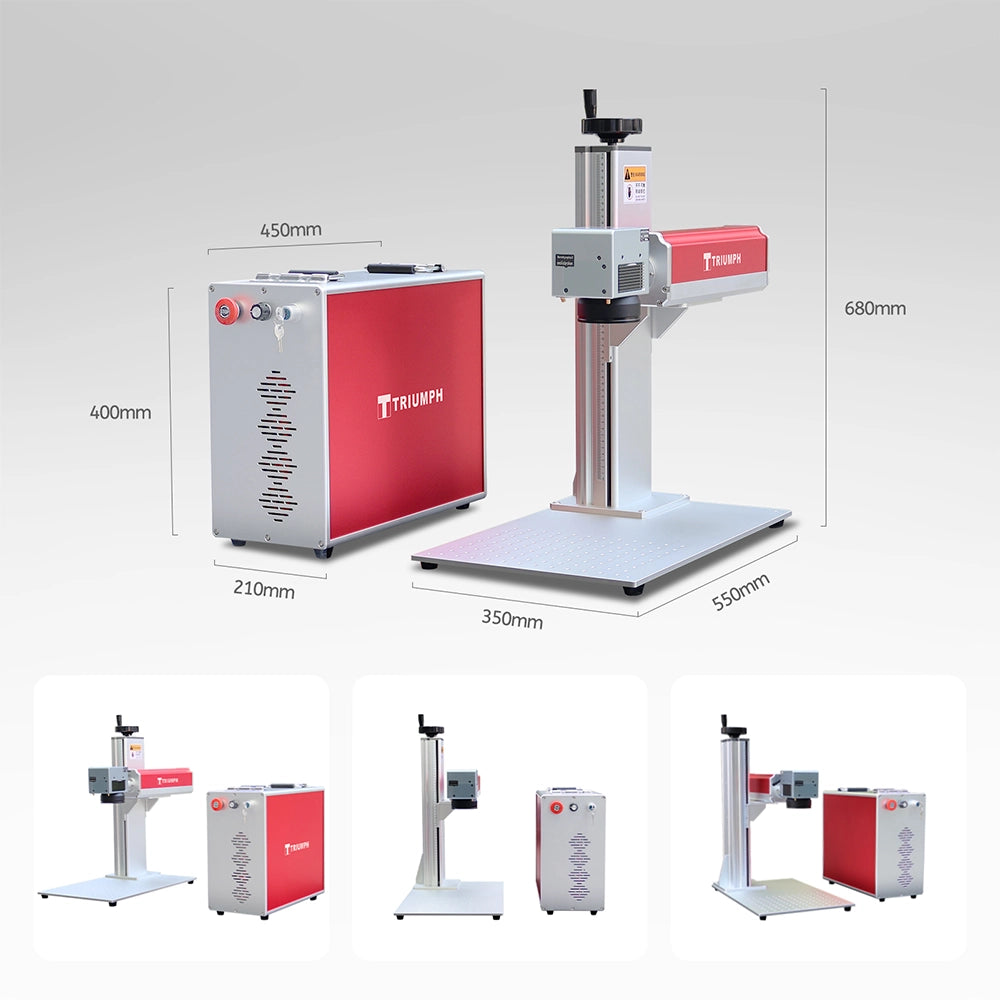

| Package Size | 85×65×85cm |
| Power Consumption | Max. 600W |
| Equipment Protection | IP54 (Marking head), IP20 (Laser unit) |
| Ambient Conditions | Operating temperature 5 to 35°C, Relative humidity max. 90% (Non-condensing) |
Frequently Asked Questions
What makes a 60W MOPA laser better than a standard Q-switched fiber laser?
The primary advantage of MOPA technology is its adjustable pulse width (ranging from 2 to 500 ns) and an extremely high frequency range (up to 4000KHz). While a standard Q-switched laser has fixed pulse parameters, the 60W MOPA lets you fine-tune energy delivery. This precision allows you to color mark stainless steel, engrave high-contrast black on anodized aluminum, and mark delicate plastics without burning or melting them.
Can this machine mark colors on all metals?
Color laser marking is specifically achievable on stainless steel and titanium substrates. By adjusting the MOPA pulse duration and frequency, you change the thickness of the oxide layer formed on the metal surface, which refracts light differently to produce various colors without any inks or chemical coatings.
Which software does the TR-F60M system support?
The system comes with industrial standard Ezcad software and natively supports LightBurn. It is fully compatible with modern computer operating systems across Windows XP, Vista, 7, 8, 10, and Windows 11, accepting multiple file design types including .ai, .dxf, .bmp, and .jpg.
What working lens configurations are provided with the package?
The machine package includes dual working lens profiles: a high-precision 110x110mm field lens for ultra-fine high-density layouts and a wider 175x175mm field lens for larger footprint production marking needs, giving you excellent flexibility out of the box.
What maintenance or ongoing operating overhead is expected?
This solid-state fiber laser system is virtually zero-maintenance. It features an integrated forced-air cooling structure with low overall energy consumption (Max 600W). With a core laser module life rated at over 100,000 operational hours and no ink or chemical consumables to restock, it offers an exceptionally low total cost of ownership.
