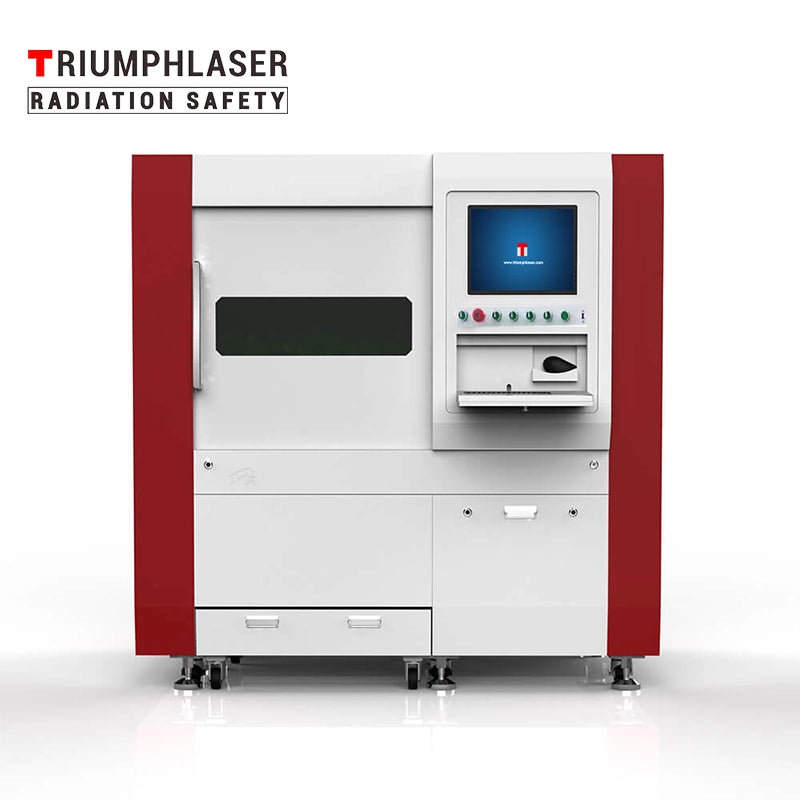

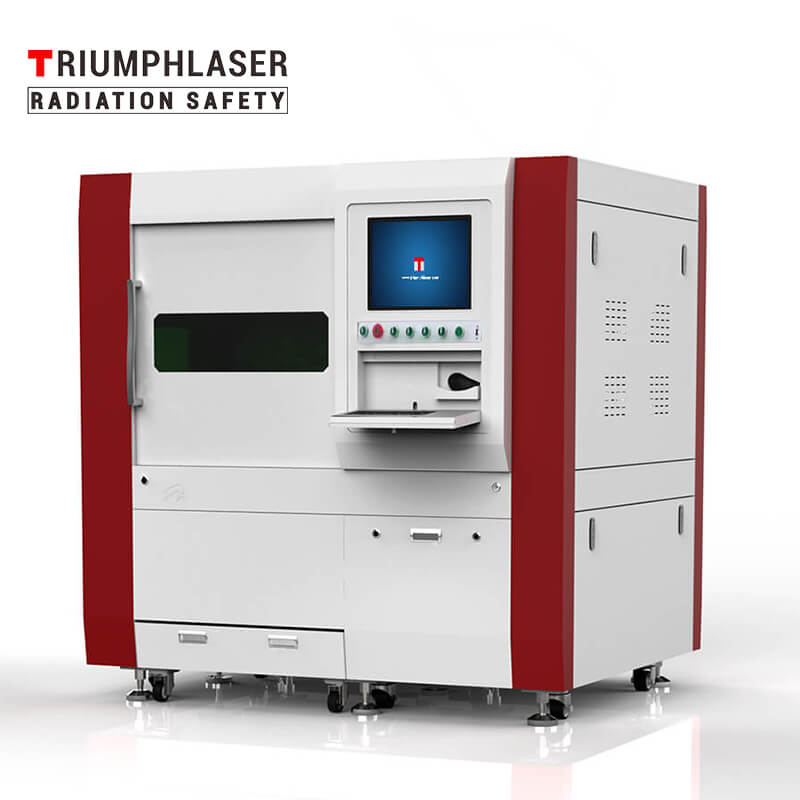

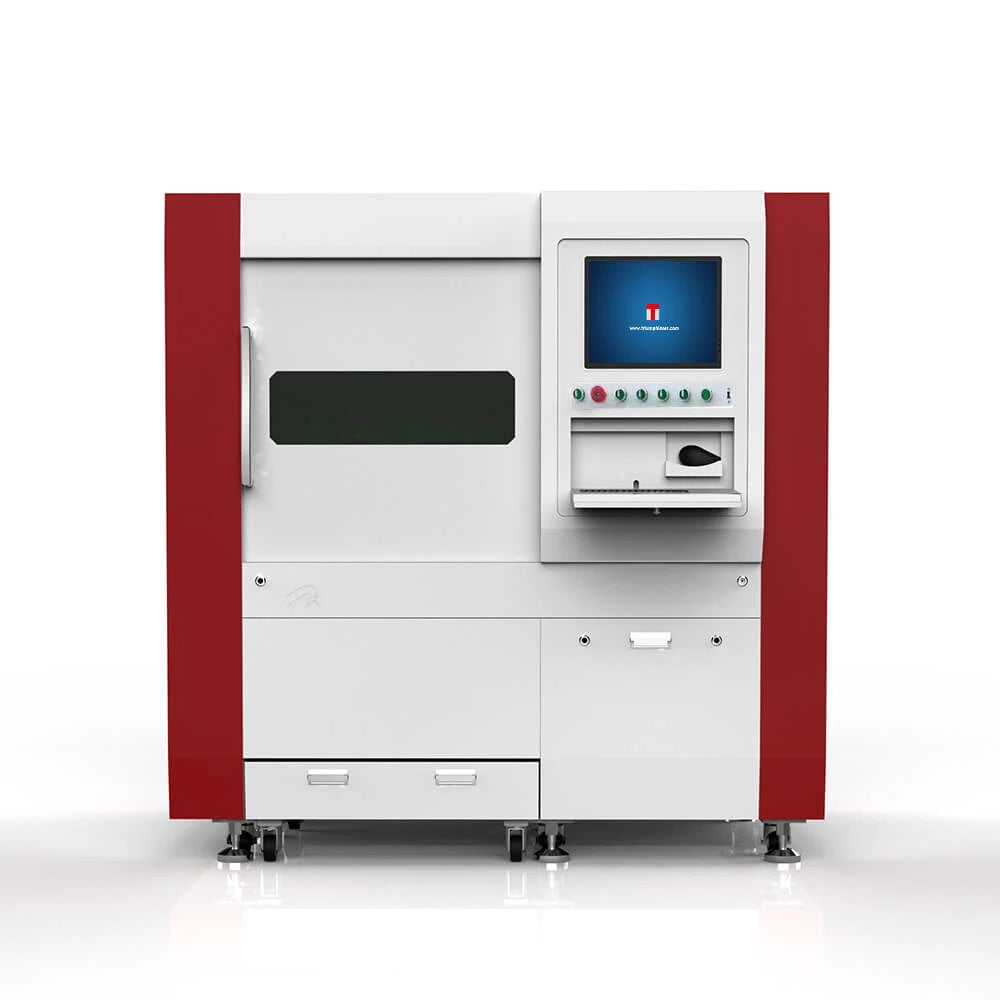

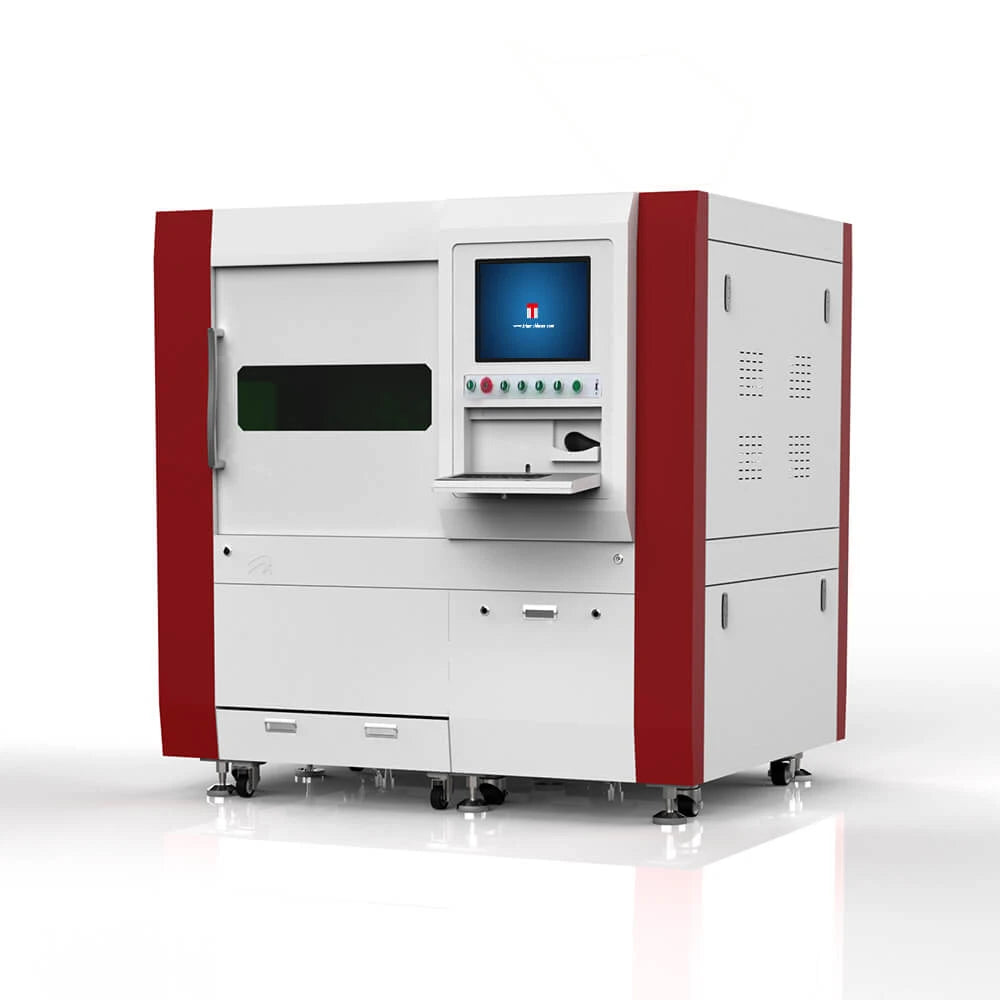

The fiber metal laser cutting machine series are metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions.
Used for cutting gold, silver, carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper, and many other types of metal materials.
Applied in high precision apparatuses, aluminum copper clad laminates, machinery, electrical apparatuses, metal crates and cabinets, electric appliance shells, metal plate processing, sheet metal processing, aviation, spaceflight, electronics, subway parts, automobiles, precision components, shipbuilding, metallurgical equipment, elevators, household appliances, gifts, crafts, and adornments.
| Model | TR-F6060 |
| Laser Power | 2000W / 3000W |
| Laser Type | Fiber Laser |
| Cooling Type | Water cooling |
| Max. Cutting Speed | 40m/min |
| Max. Acceleration | 1G |
| Working Area | 600×600mm (23.6"×23.6") |
| Repetition Precision | ±0.02mm |
| Power Source | AC 220V±10%, 50/60Hz / AC 380V±10%, 50/60Hz |
| Transmission | Precise pinion and rack, dual-drive transmitting |
| Gross Weight | 1350kg (2976.2 lbs) |
The maximum cutting thickness depends on the selected laser power (2000W or 3000W) and the material substrate. Generally, a 2000W configuration can cleanly process carbon steel up to 10mm and stainless steel up to 6mm, while the 3000W upgrade increases capacity up to 14mm carbon steel and 10mm stainless steel with optimized high-speed cutting parameters.
The 600x600mm layout is specifically engineered for high-precision, small-to-medium sheet processing. Combined with the dual-drive pinion and rack transmission, this compact size eliminates the structural deviation found in large-format beds, guaranteeing a tight ±0.02mm repetition precision for aerospace, electronics, and micro-machining sectors.
High-power fiber lasers demand active thermal management. The integrated dual-temperature water chiller independently cools both the fiber laser source and the cutting head optics. This prevents thermal lensing, extends optical element lifespans, and maintains constant cutting efficiency during 24/7 continuous industrial cycles.
The equipment supports flexible industrial voltage options including AC 220V±10% or AC 380V±10% at 50/60Hz. The power architecture will be factory-configured and calibrated according to your region's commercial grid specifications prior to dispatch.
