Triumph Robotic Laser Welding Machine - Automated Fiber Laser Welding Robot System
Couldn't load pickup availability
Robotic Laser Welding

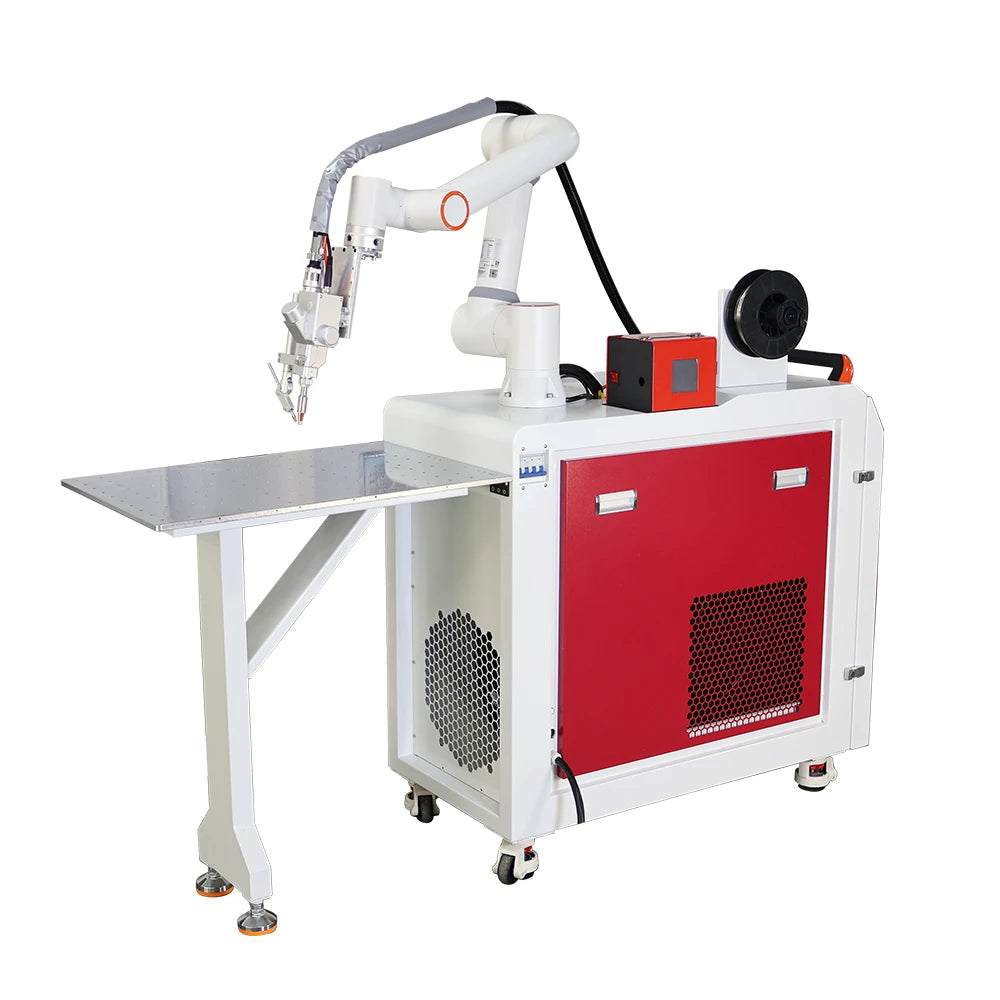

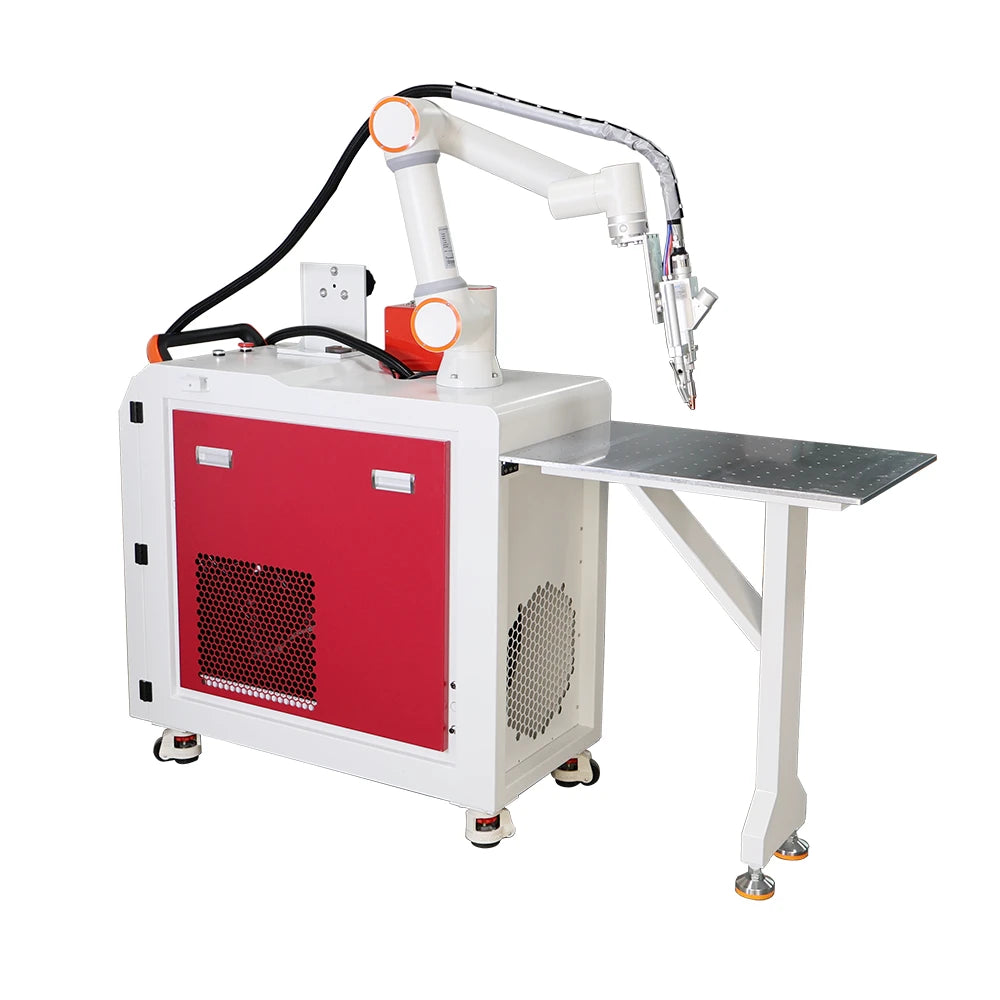

Our Robotic Laser Welding Machine integrates a high-performance fiber laser with a 6-axis robotic arm, delivering precise and consistent welds on complex 3D structures. Ideal for automated production lines in automotive, aerospace, metal fabrication, and more.
Features of Robot Laser Welding Machine
Enables flexible welding from any angle, perfect for intricate and hard-to-reach parts.
Supports offline programming and real-time path adjustment for complex welding tasks.
Easily integrates into automated production lines, improving throughput and consistency.
Build, simulate, and deploy robotic welding solutions in days. No programming knowledge needed.
Machine Operational Video
Why Robotic Laser Welding
Maximize your workforce by assigning high-skill tasks to experienced welders and routine, time-intensive work to a welding robot.
Achieve superior weld quality with precise torch control and repeatable, accurate weld paths every time.
Minimize waste and reduce downtime to dramatically lower your cost per weld.
Accelerate your overall manufacturing throughput with continuous high-speed automated processing and reduced cycle times.

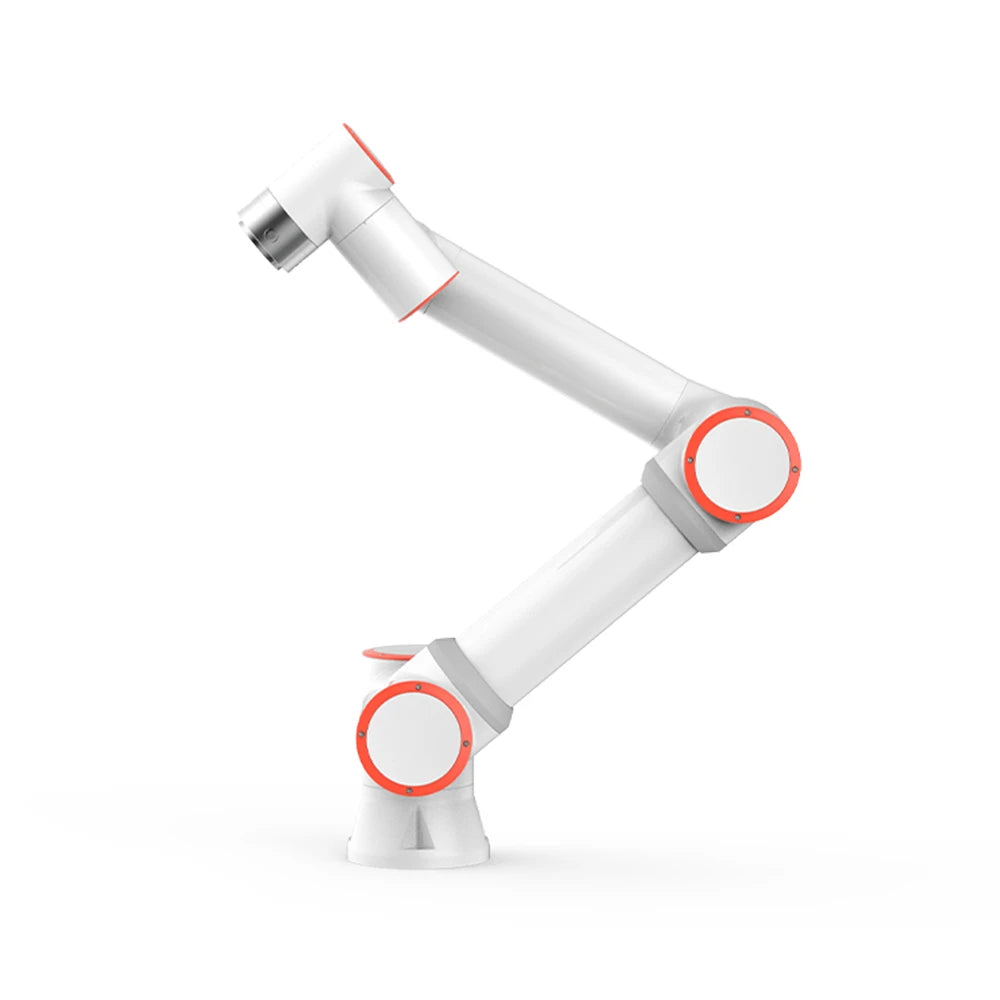

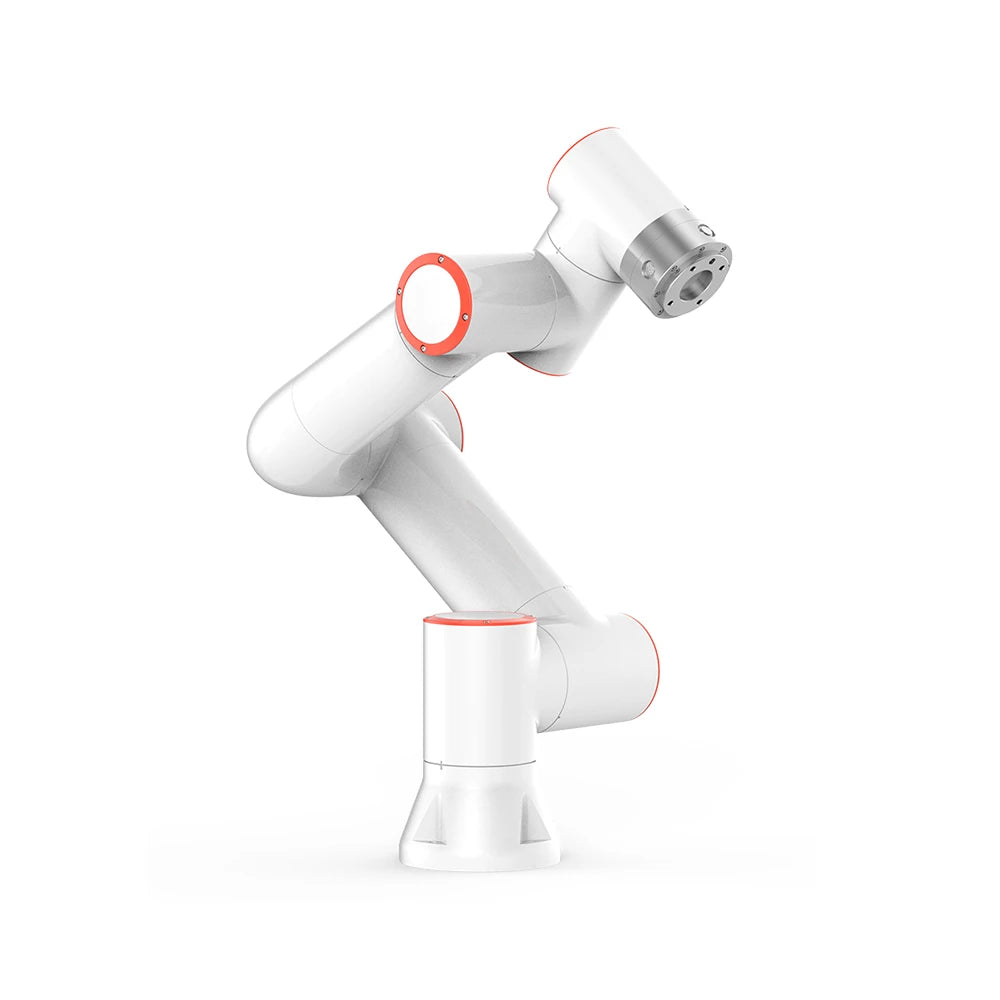

Robot Technical Parameters
| Payload weight | 5kg |
| Working radius | 922mm |
| Repeat positioning accuracy | ±0.02mm |
| Degrees of Freedom | 6 revolute joints |
| Base diameter | 149mm |
| Operating temperature | 0-45ºC |
| Weight | 22kg |
Laser Technical Parameters
| Model | TR-HLW |
| Laser Power | 1500W / 2000W |
| Laser wavelength | 1080nm |
| Working mode | Continuous |
| Input voltage | 220V |
| Swing width | 0~5mm |
| Swing frequency | 1~30Hz |
| Welding gun interface | QBH |
| Cooling type | Water cooling |
Frequently Asked Questions
What materials can the Robotic Laser Welding Machine process?
This system is highly effective for welding a wide range of metals, including stainless steel, carbon steel, aluminum alloy, copper, and galvanized sheets. The continuous fiber laser provides optimal penetration and cosmetic finish across varying material thicknesses.
Do operators need advanced robot programming knowledge?
No advanced programming language is required. The system supports smart welding path programming and offline simulation. Operators can easily configure and deploy complex paths through user-friendly guiding teach-pendants within days.
How does the 6-axis configuration enhance complex 3D assembly lines?
The 6 revolute joints offer unmatched degrees of freedom, allowing the laser torch to navigate tight corners, cylindrical contours, and asymmetrical shapes. This eliminates the need to constantly reposition the workpiece, maintaining a strict ±0.02mm repeatability accuracy.
What is the lead time for standard solutions and custom deployment?
Standard payload configurations (such as the 5kg / 922mm working radius models) are readily available. Custom integration, modular fixtures, or multi-station automation layouts can be built, simulated, and ready for deployment efficiently according to project specs.
