SA Series Industrial Fume Extractor
Couldn't load pickup availability

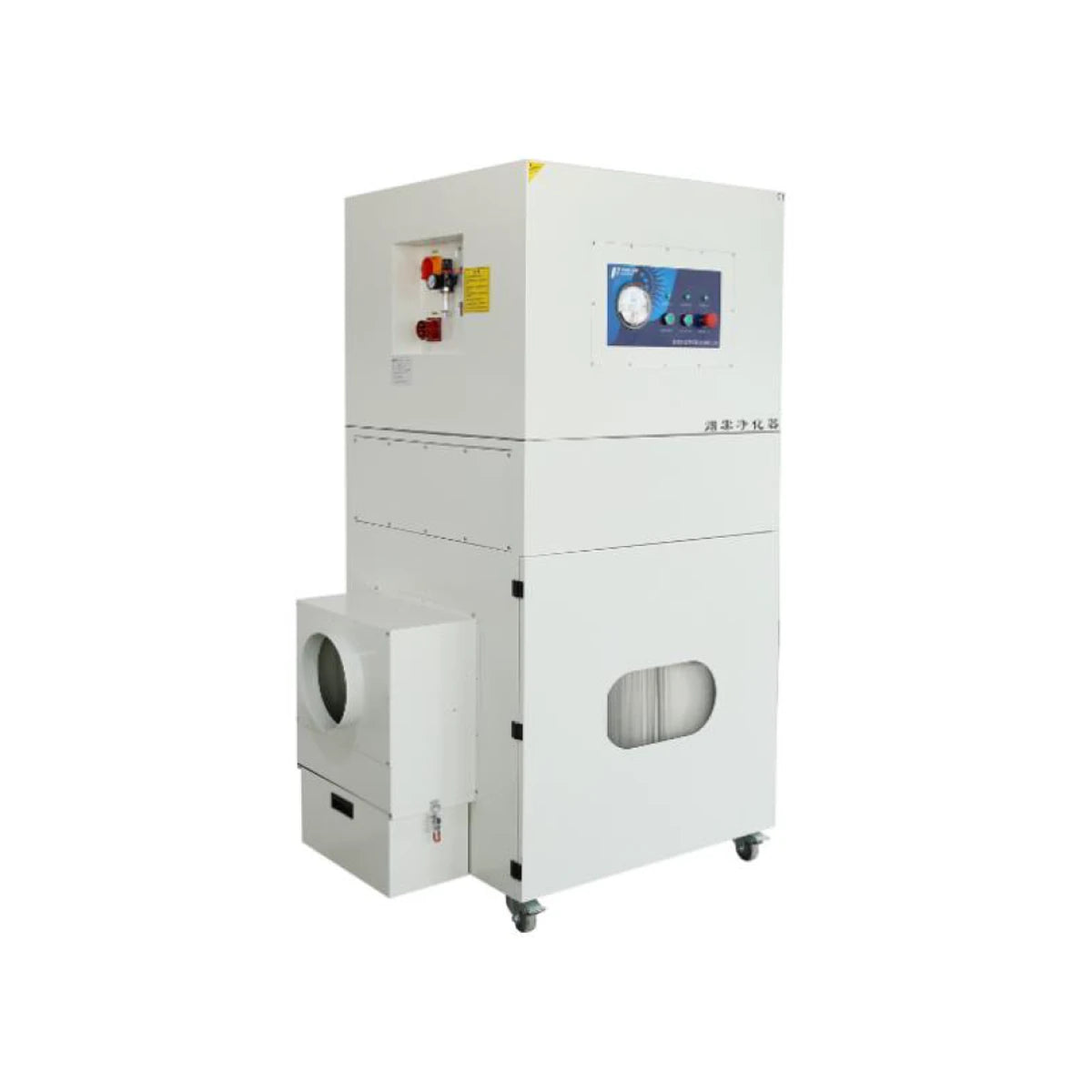

5000SA High-CFM Industrial Fume Extractor
The 5000SA is a heavy-duty industrial dust collector engineered for continuous extraction of heavy smoke, dust, and toxic gases. Delivering up to 5000 m³/h air volume and 3500 Pa negative pressure, it provides high-efficiency filtration for heavy industrial applications like metal laser cutting, laser cladding, laser quenching, and EV battery manufacturing.
Key Highlights
- Industrial-Grade Airflow: Powered by a 5.5 kW motor delivering up to 5000 m³/h airflow and 3500 Pa pressure.
- Ultra-High Filtration Efficiency: Equipped with Japanese TORAY PTFE-laminated membrane filter cartridges with efficiency ≥99.9% @ 0.3 microns.
- Patented Rotating Jet-Pulse Cleaning: Features a patented automatic rotating pulsejet cleaning system that improves dust removal performance by 300%.
- Schneider Electric Controls: Built with premium French Schneider electrical components, thermal overload protection, and phase sequence safety mechanisms.
- Quick-Release Filter Design: Smart mechanical design allowing filter replacement or maintenance within 1 minute.
- Spark Protection: Integrated spark arrestor built inside the air inlet to prevent direct spark-to-filter contact.
Recommended Applications
Designed for high-demand, high-volume smoke and dust filtration processes:
Detailed Features & Engineering
Power & Blower System
Powered by a high-grade industrial motor and custom aluminum alloy impeller. Engineered for low vibration, minimal noise, high pressure-flow ratio, and continuous 24/7 heavy-duty operation.
Schneider Electrical Safety
Main electrical components feature premium Schneider Electric parts. Features built-in AC contactors, thermal overload, loss-of-phase protection, and remote linkage control capabilities.

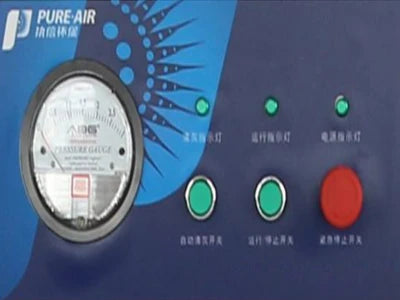

Intelligent Control System
Combines pressure differential gauge sensing and time relays to automate online/offline cleaning cycles, ensuring maximum dust shaking performance even for sticky or stubborn particles.
3x Cleaning Performance
Patented auto-rotating pulsejet system sweeps compressed air evenly across the inner wall of the PTFE filter, providing 300% higher cleaning efficiency compared to traditional pulse blowing methods.
Drawer Dust Collection
Equipped with a quick-access pull-out drawer dust collector. Conveniently remove and dump collected particulates without interrupting workshop cleanliness.
Integrated Interface & Casters
All interface components are integrated for easy maintenance. Heavy-duty 3-inch anti-slip PU industrial casters allow smooth position adjustment across shop floors.
Technical Specifications
| Model | 5000SA |
|---|---|
| Max Airflow | 5000 m³/h |
| Max Pressure | 3500 Pa |
| Input Power | 5.5 KW |
| Voltage / Frequency | 3-Phase 380V, 50Hz |
| Filter Area | 48 m² |
| Filter Type | Japanese TORAY PTFE-Laminated Cartridges (Anti-static / Flame-retardant optional) |
| Filtration Efficiency | ≥ 99.9% @ 0.3 μm |
| Operating Noise | ≤ 79 dBA (@ 1 meter) |
| Inlet Diameter | 300 mm |
| Dimensions (incl. box) | 1242 × 903 × 2015 mm |
| Net Weight | 230 kg |
