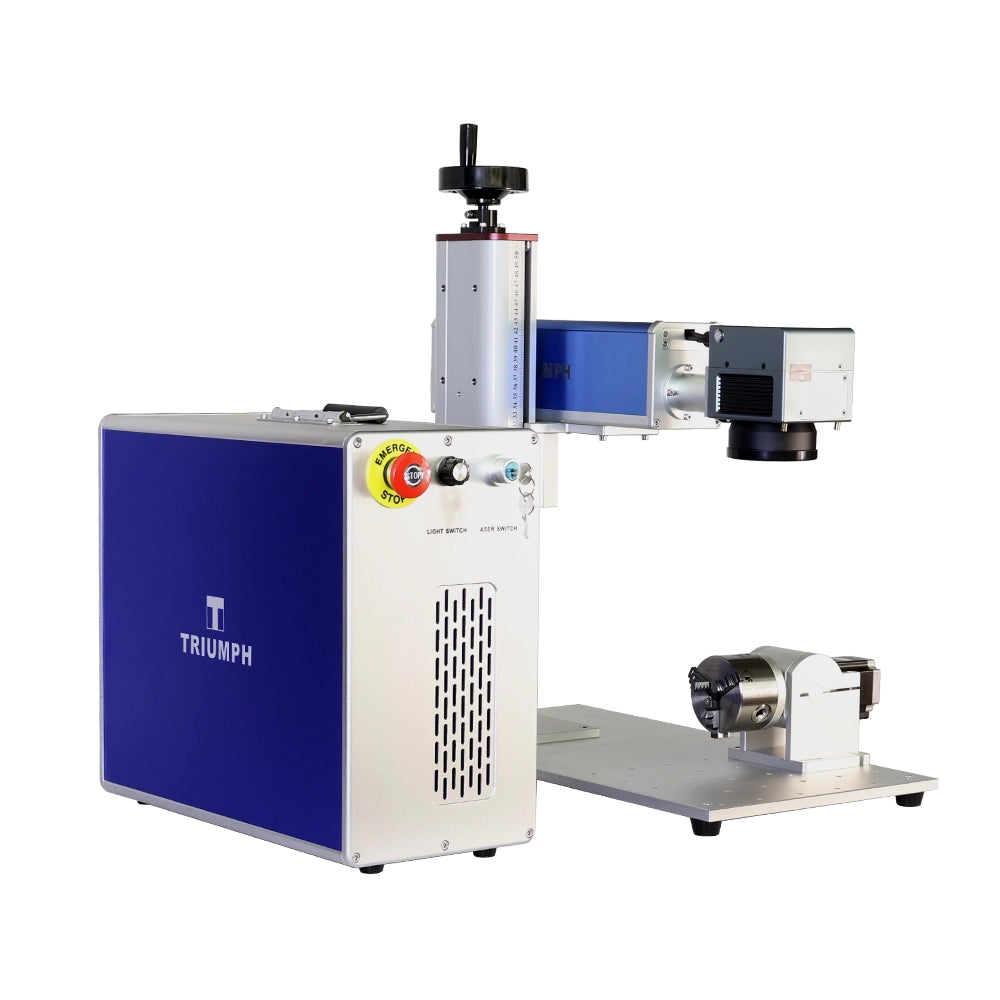

50W Split Fiber Laser Marking Machine
High-Power Precision Laser Marking for Industrial Applications
The 50W Split Fiber Laser Marking Machine is a high-performance industrial solution meticulously engineered for deep engraving, high-speed marking, and long-term continuous production lines. Featuring an innovative standalone separate cabinet configuration, this machine offers exceptional structural stability, highly flexible installation options, and far simpler routine maintenance compared to standard all-in-one integrated setups. Powered by a robust 50W output, it effortlessly textures and engraves metals and broad engineering plastics—making it the ideal choice for automotive parts, aerospace, hardware tools, electronics, medical devices, and heavy metal fabrication industries.
Key System Features
Dual Lenses Included
Comes standard with a precision 110x110mm lens for focused, high-clarity deep results (under 1mm depth). We also include a bonus spare 200x200mm field lens for handling larger surface layouts, with alternative field sizes available upon request.

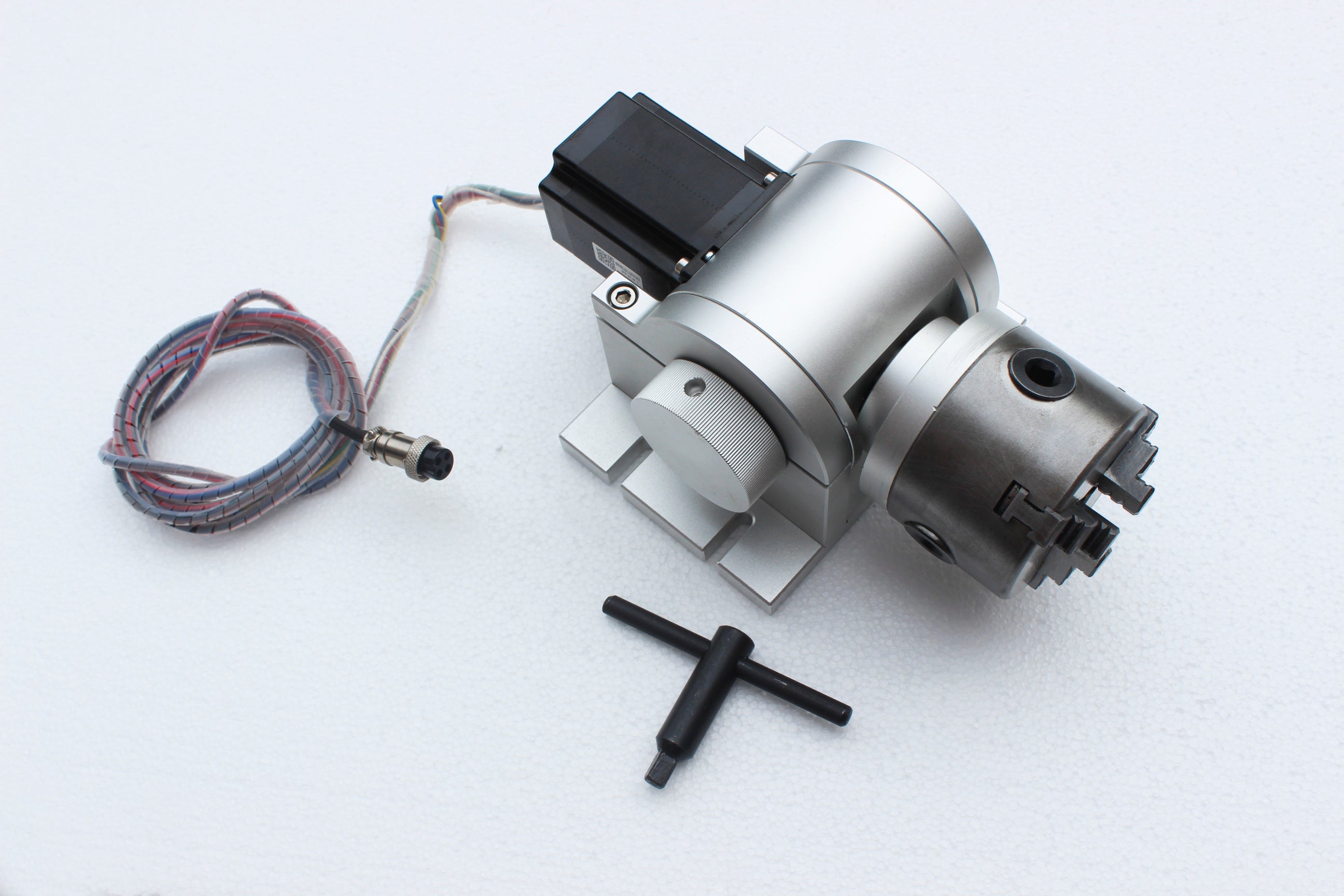

Rotary Attachment Included
Equipped with a heavy-duty 80mm rotary axis tool designed for flawless cylindrical marking and glass/cup profiling. If you need to mark small delicate items like rings, simply inform us to receive specialized micro-ring engraving fixtures.
Turnkey Accessory Package
Get straight to work with a complete hardware kit. Each unit arrives packed with complimentary industrial laser protection safety goggles, a hands-free foot switch controller, specialized alignment toolkits, and essential startup hardware.
Global Voltage Compatibility
Available in both 110V and 220V power configurations. We will automatically configure and ship the correct voltage specification based on your destination country. Highly energy efficient with a peak draw under 1000W.
Flexible Software Integration
Includes standard industry-proven EZcad software. Customers can easily install the software and drivers on their own computers. It offers full design compatibility with native support for formats like PLT, PCX, DXF, BMP, and more.
Maintenance-Free Reliability
Driven by a premier solid-state fiber laser source with an exceptional service lifespan of up to 100,000 hours. Requires absolutely zero consumables and no complex alignment overhauls, fully supported by our responsive after-sales team.

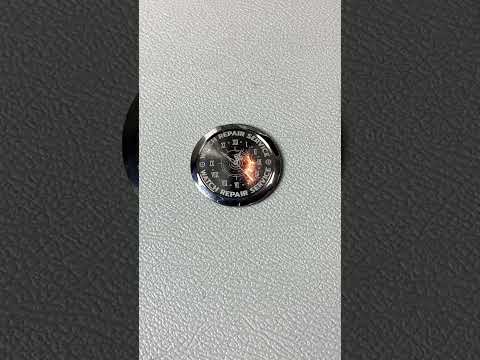

Machine Overview & Process Videos

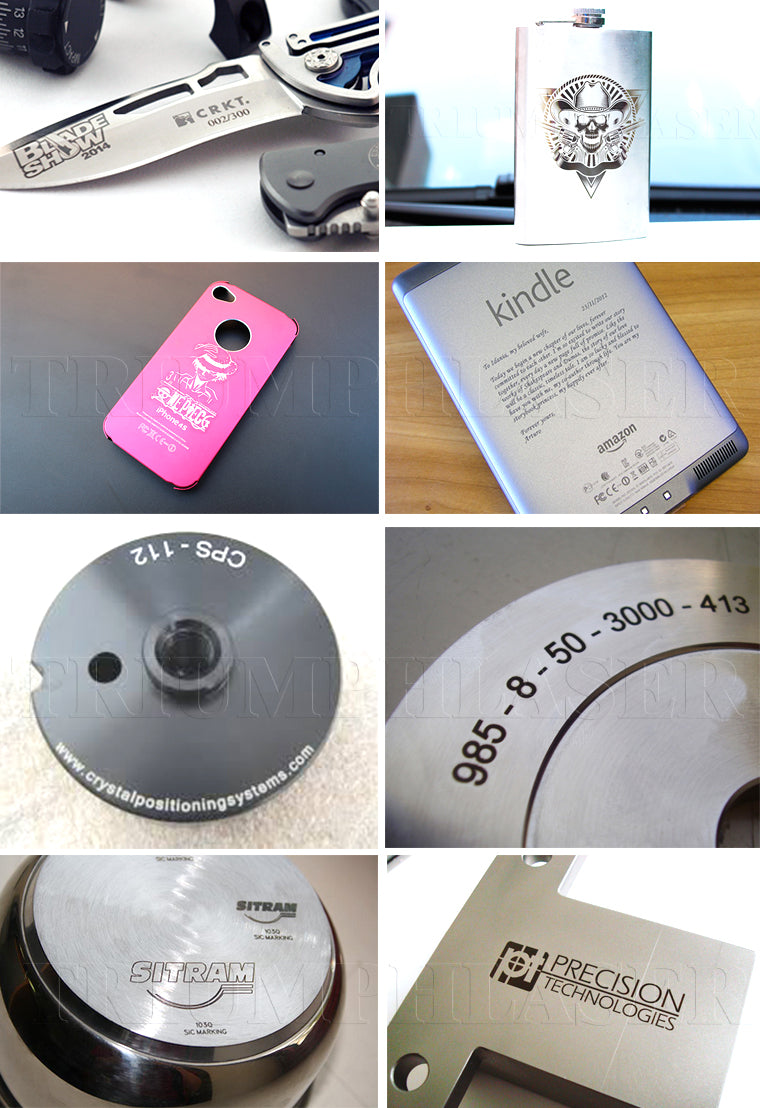

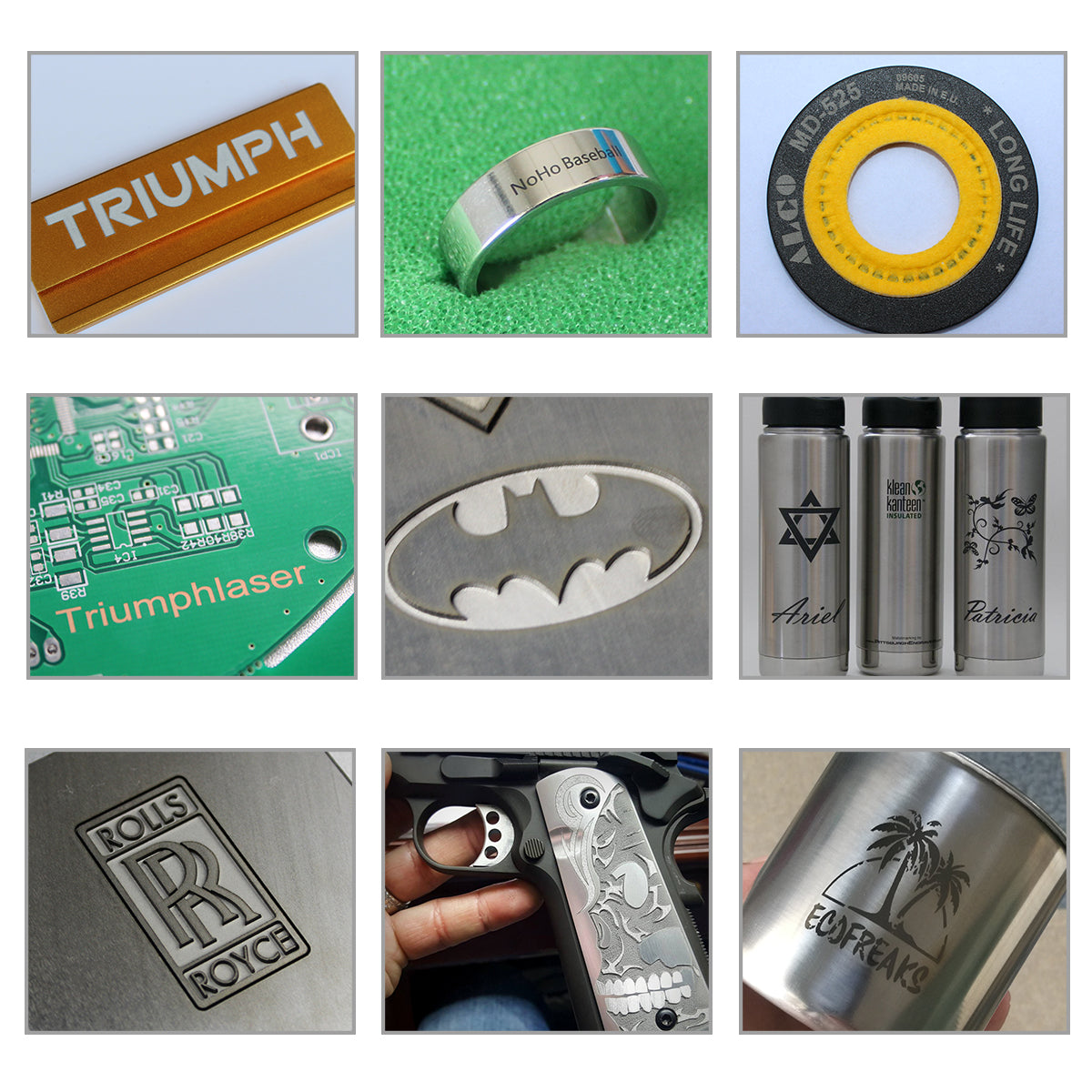

Industrial Marking & Engraving Samples
Broad Material & Industrial Applications
Thanks to its potent 50W output density, the TR-F50M system is widely adopted across multiple precise industrial manufacturing sectors:
- Electronics & IT: Integrated Circuit (IC) packages, communication modules, electrical wiring jackets, heavy computer components, and consumer appliances.
- Precision Hardware: High-density tools, metric measuring instruments, surgical equipment, aviation parts, and structural aerospace elements.
- Consumer Goods & Decor: Luxury jewelry engraving, apparel branding labels, unique gifts, office machinery, identity scutcheons, and modern sanitary ware.
- Packaging & Utilities: Durable branding on stainless steel dishware, automated batch serialization on food, beverage, smoking, and alcohol containers.
Simple Operation Workflow
Every system includes detailed operation manuals, comprehensive video masterclasses, and step-by-step installation guides. Customers can quickly learn to configure laser frequency, speed settings, and graphic properties on their PC within hours.

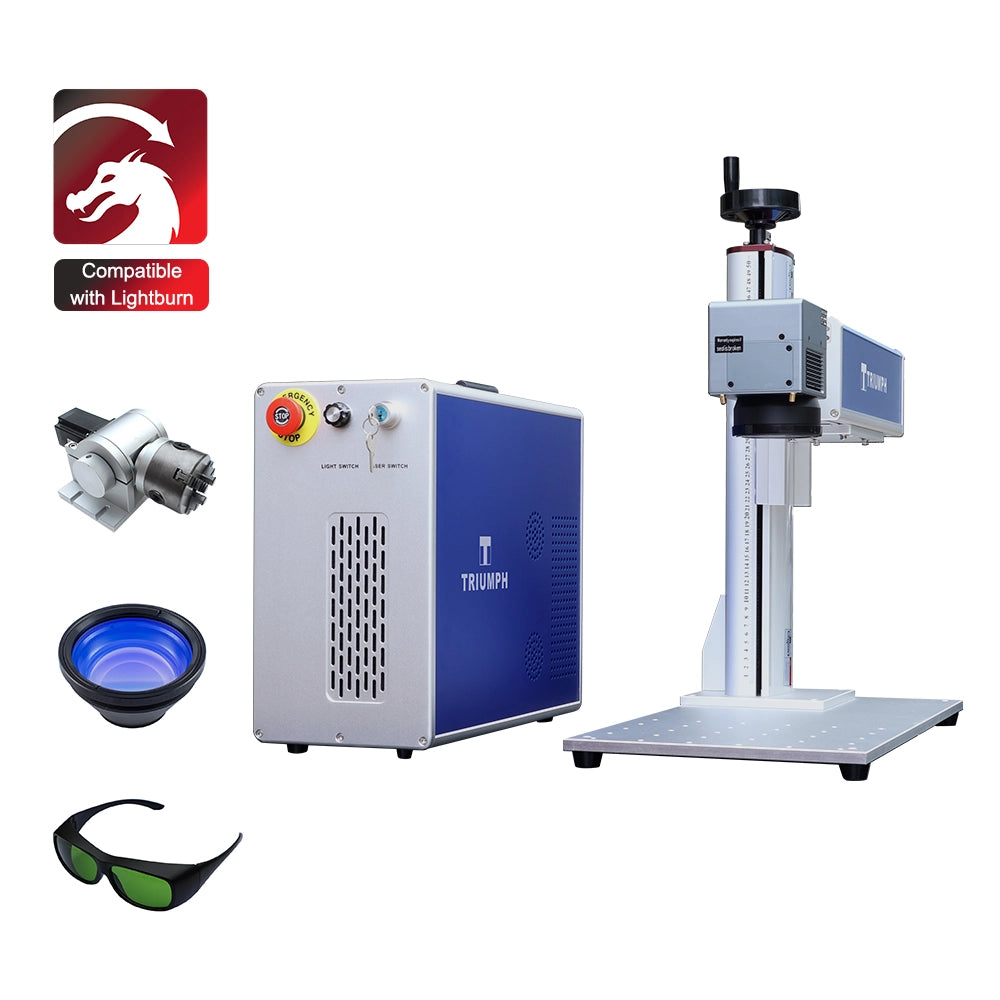

Standard Packing List
Technical Parameters
| Model | TR-F50M |
| Laser Power | 50W |
| Laser Type | Solid-State Fiber Laser |
| Wavelength | 1064nm |
| Laser Pulse Frequency | 20–80kHz |
| Beam Quality | <1.4M² |
| Engraving Area | Standard: 110×110mm | Included Spare: 200×200mm |
| Repetition Precision | ±0.01mm Min |
| Formats Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
| Power Source | AC 110V / 220V (Shipped according to destination country) |
| Power Consumption | <1000W |
| Laser Module Life | >100,000 Hours |

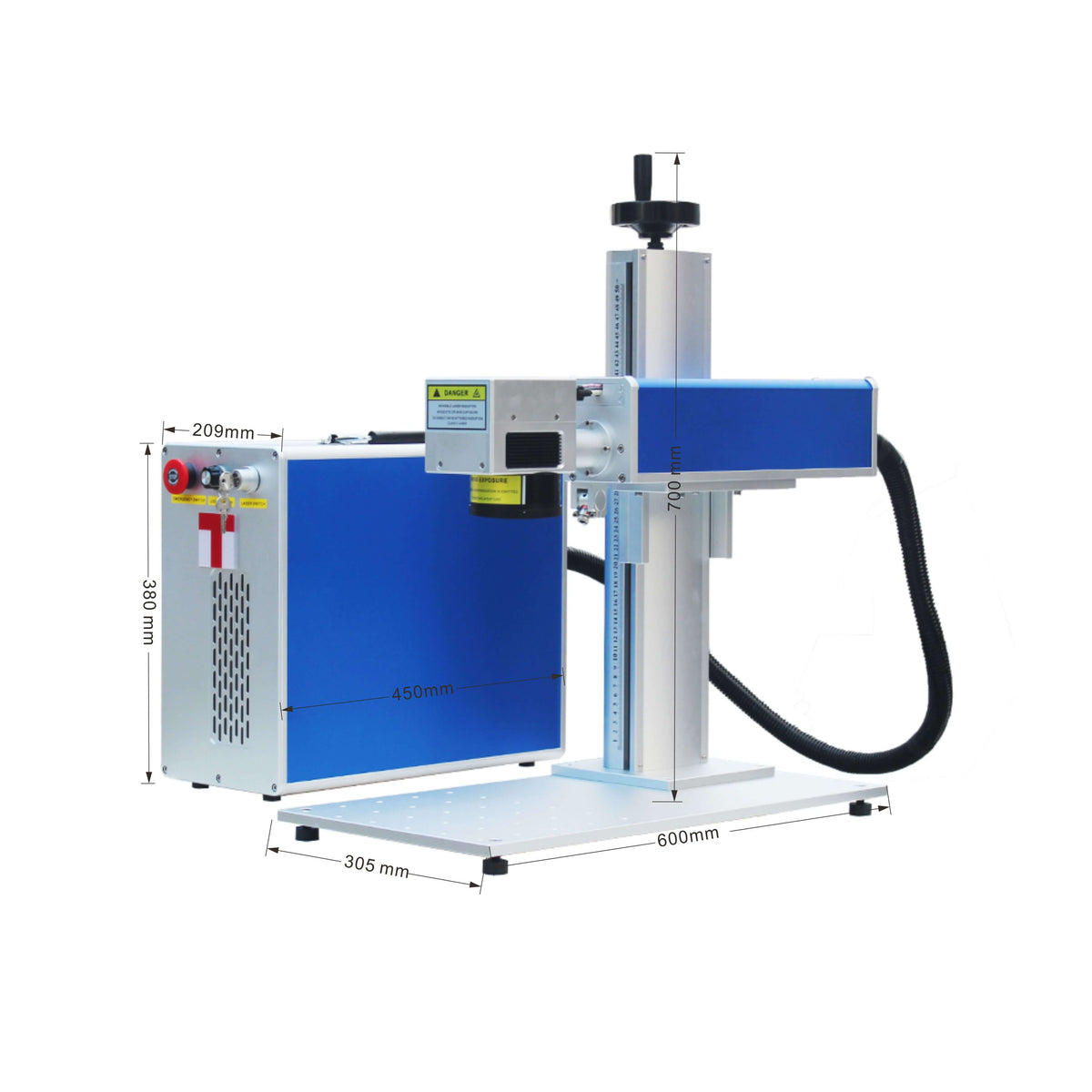

| Packing Size | 80×48×83cm (31.5"×18.9"×32.7") |
| Gross Weight | 80kg (154.3 lbs) |
Frequently Asked Questions
What materials can the 50W Split Fiber Laser engrave?
This industrial fiber laser system is highly efficient at marking and engraving all types of metals (including stainless steel, aluminum, brass, copper, titanium, and gold) as well as broad engineering plastics, carbon fiber.
How do the two included field lenses work?
Your package comes with two field lenses: a 110x110mm lens and a 200x200mm lens. The 110x110mm lens provides the highest energy density, ideal for deep engraving tasks (under 1mm). The spare 200x200mm lens allows you to instantly adapt the machine to process larger design formats.
Does the machine come with a computer, and how do I install the software?
No, a computer is NOT included in the package. You will need to use your own computer/laptop to run the machine. We provide the industry-standard EZcad software along with comprehensive digital installation guides and step-by-step videos, allowing you to easily complete the software and driver setup on your personal PC.
Which voltage specification will I receive for my workshop?
Our machines are available in two independent specifications: 110V and 220V. You do not need to worry about choosing the option manually; our factory will automatically configure, calibrate, and ship the exact voltage and plug standard matching the shipping destination of your order.
Are there any hidden consumable costs or regular servicing required?
No, there are zero consumables needed. The high-performance solid-state fiber laser source features an exceptional lifespan of over 100,000 hours without needing gas refills or alignment maintenance, maximizing your production uptime.
