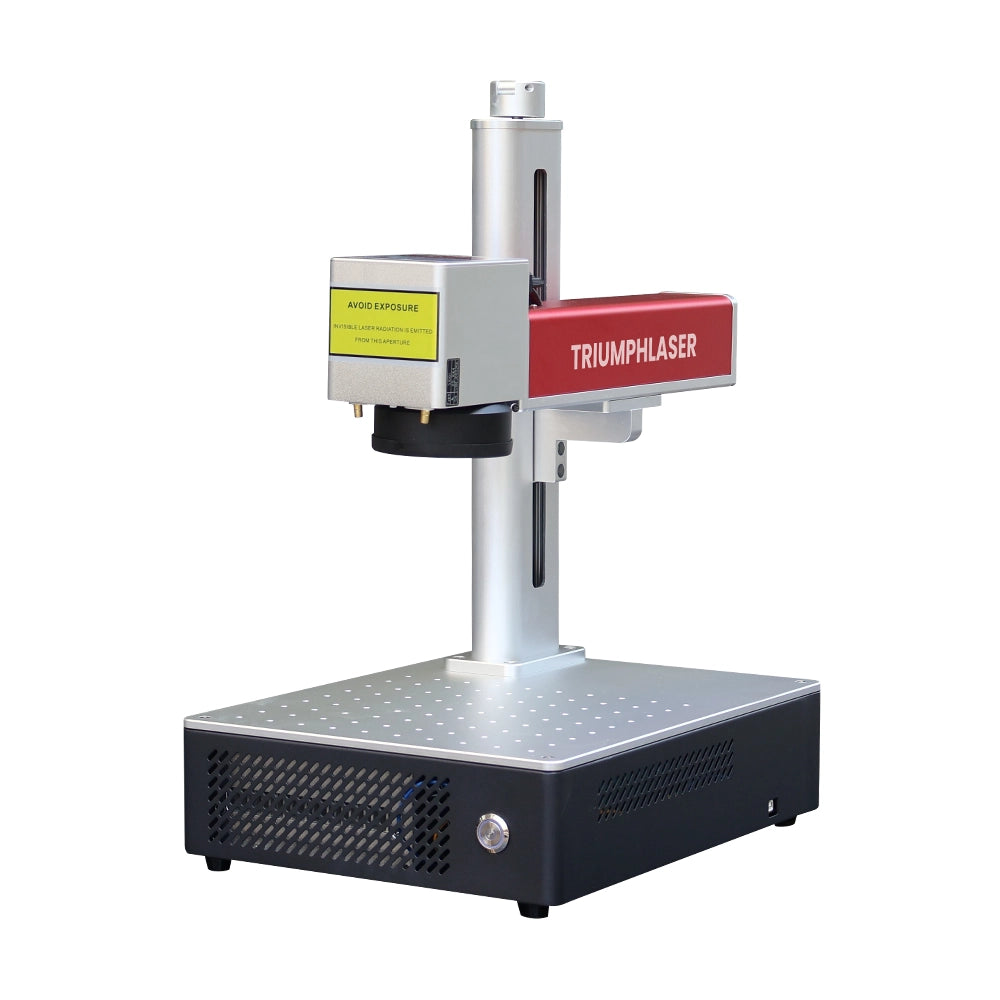

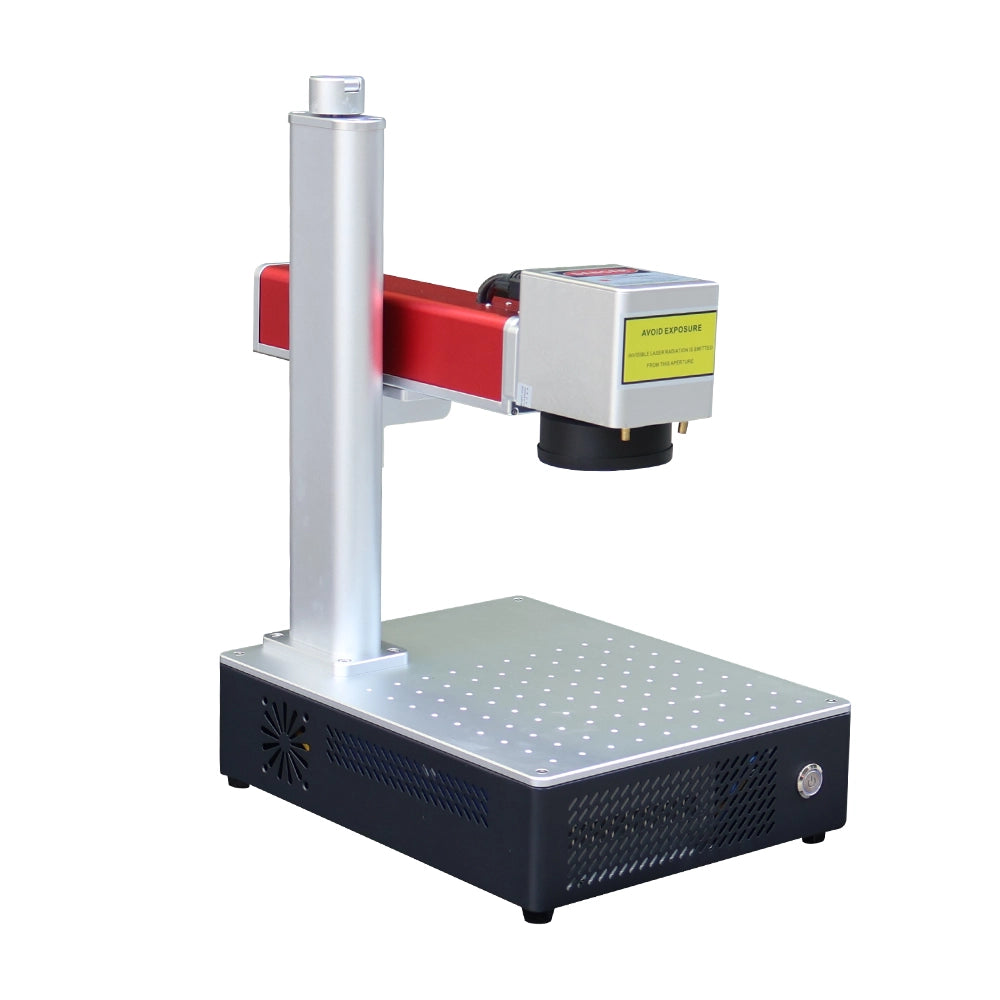

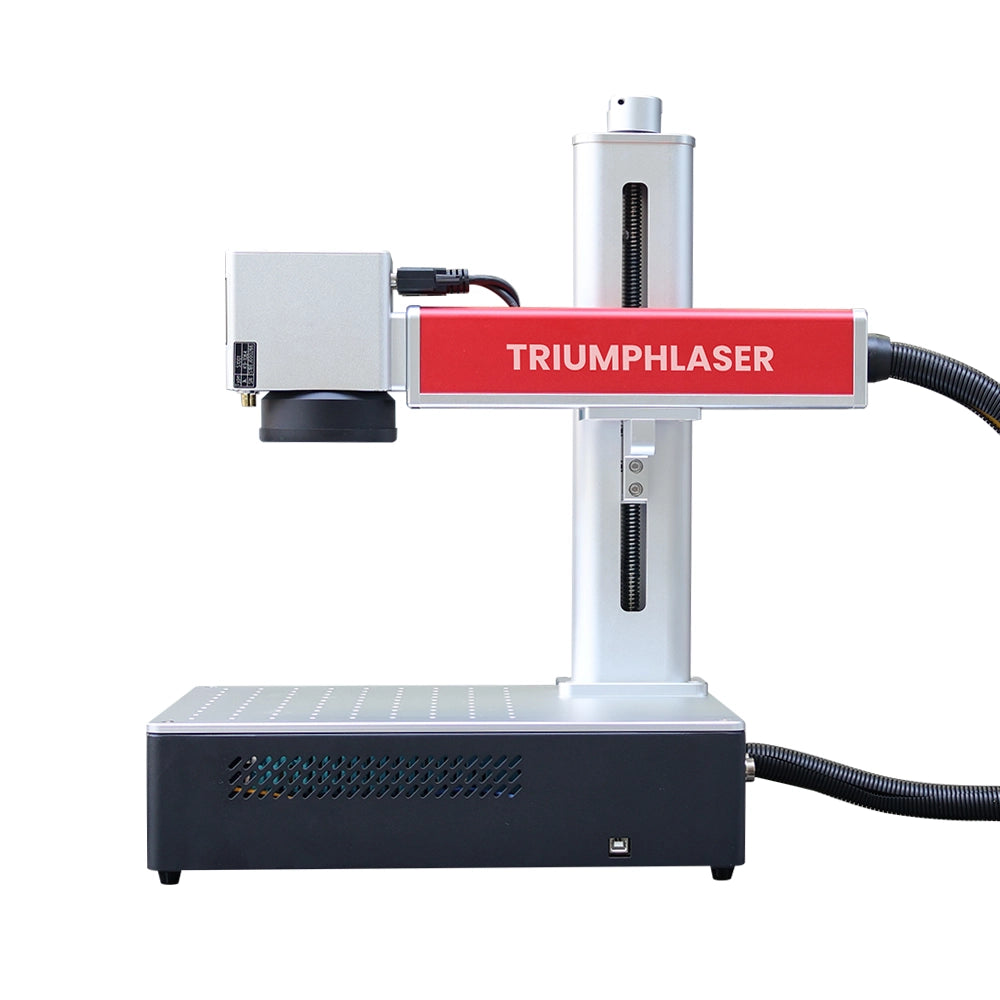

Triumph FM Series Fiber Laser Marking Machine
Unlock unparalleled industrial engraving performance with our premium Fiber Laser Marking Machine series, available in 20W, 30W, and 50W configurations. Engineered for exceptional speed and microscopic accuracy, this versatile system excels at marking permanent barcodes, serial numbers, and complex graphics onto a vast range of materials, including metals, plastics, and polymers. Featuring an advanced air-cooled design and a maintenance-free laser module with over 100,000 hours of operational lifespan, it represents the ultimate cost-effective solution for manufacturing, traceability, and bespoke craftsmanship.
Product Videos
Technical Parameters
| Model | FM-20 | FM-30 | FM-50 |
| Laser Power | 20W | 30W | 50W |
| Laser Wavelength | 1064nm | ||

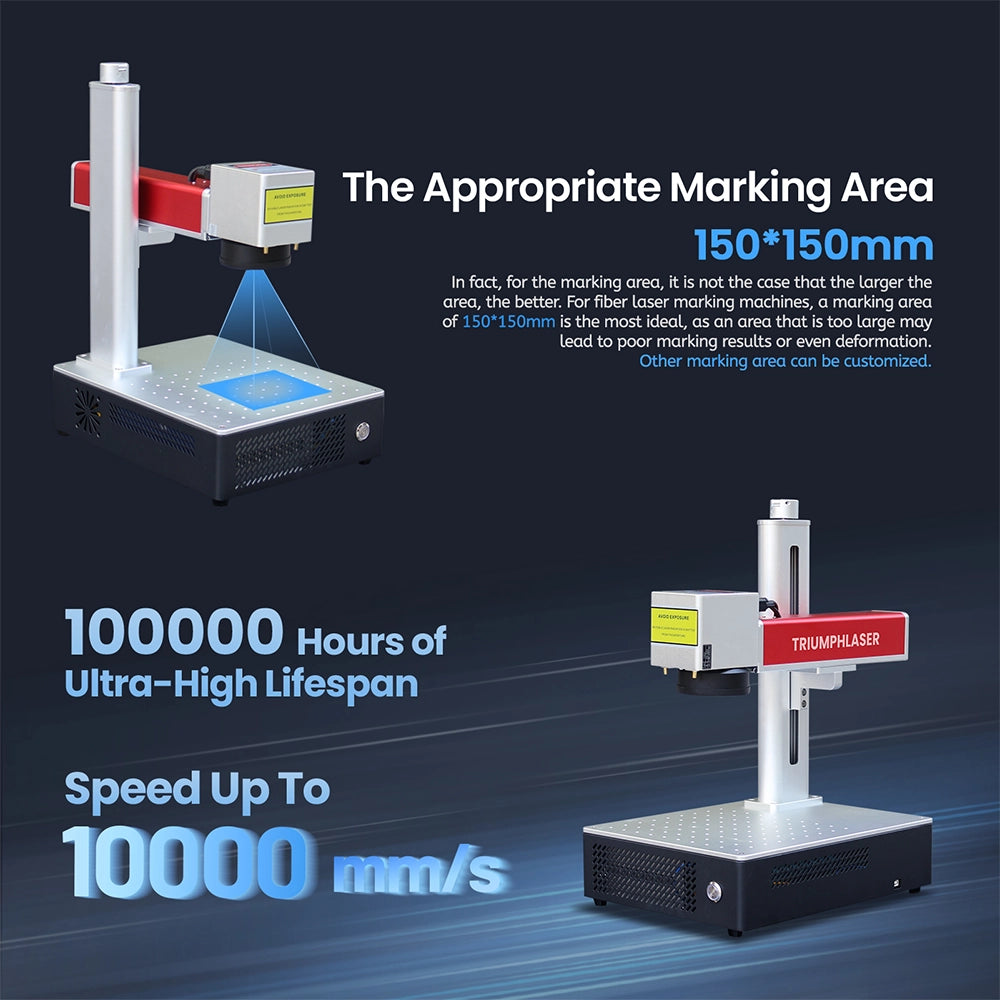

| Working Area | 150×150mm | ||
| Laser Frequency | 30-60kHz | ||
| Max. Engraving Depth | 0.015-0.5mm | 0.015-1mm | 0.015-2mm |
| Max. Engraving Speed | 10000mm/s | ||
| Positioning Accuracy | ±0.1μm | ||
| Repeatability | <0.001mm | ||
| Software | BalAppSimple | ||
| Compatible Operating Systems | Windows XP/7/10/11 | ||
| Minimum Line Width | 0.02-0.04mm | ||
| Cooling Method | Air Cooling | ||
| Supported Files | .ai, .bmp, .dx, .dxf, .gif, .jpg | ||
| Laser Life | 100,000 hours | ||
| Warranty | 2 Years | ||
| Power Consumption | Max. 250W | Max. 350W | Max. 400W |
| Package Weight | 25kg | 30kg | 32kg |

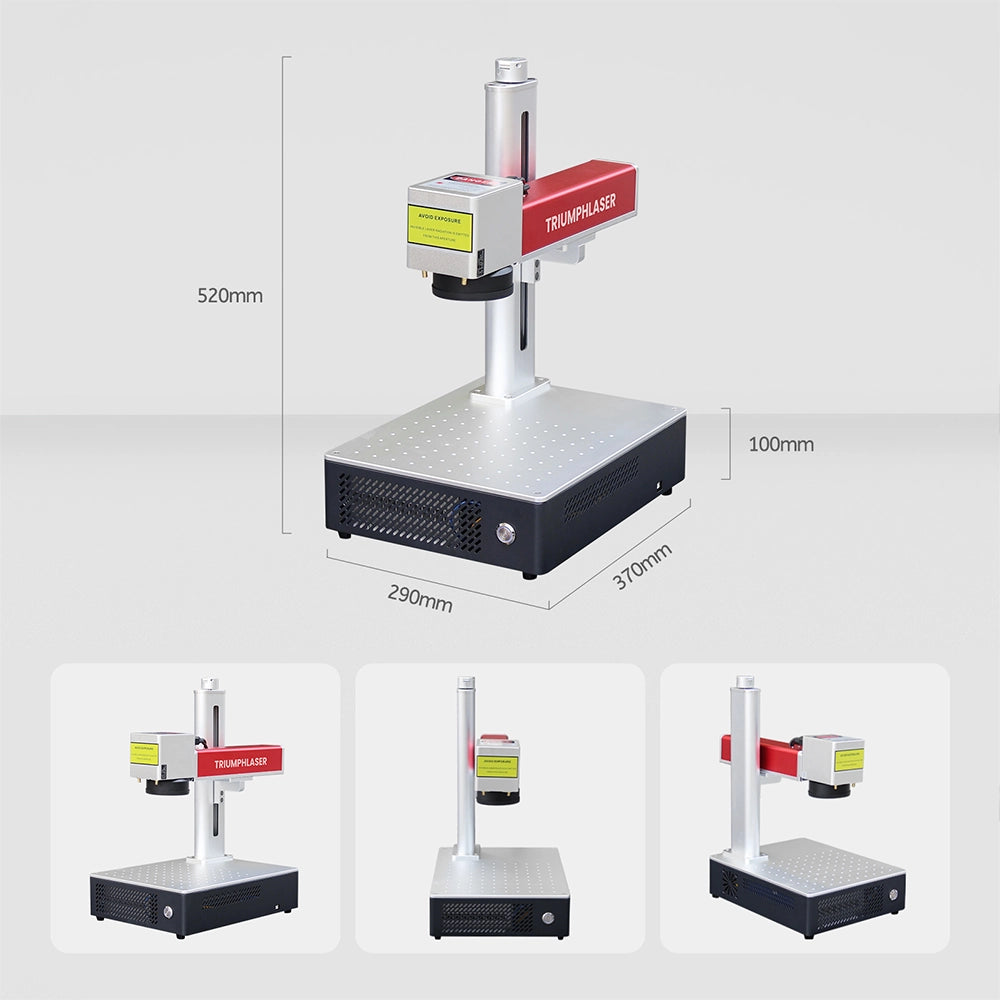

| Package Size | 71×57×21cm | ||
| Power Requirements | AC220V/50Hz Or AC110V/60Hz | ||
Frequently Asked Questions
What materials can a fiber laser marking machine work on?
Fiber laser marking machines are primarily designed for metals and hard plastics. They work exceptionally well on stainless steel, aluminum, brass, copper, titanium, iron, and various alloys. They can also engrave on certain non-metal materials like ABS, PVC, polycarbonate, and coated or painted polymers.
Does this machine require expensive maintenance or consumables?
No, one of the greatest advantages of fiber laser markers is that they are virtually maintenance-free. There are no gas or fluid consumables required, and the solid-state fiber system operates cleanly. You only need to occasionally keep the field lens clean from dust using an optical cleaning cloth.
Is the included software easy to use, and does it support vector files?
Yes, the standard BslApp Simple software is highly intuitive and user-friendly. It fully supports popular industrial design formats, allowing you to easily import vector and graphic files such as .ai, .dxf, .plt, .bmp, .jpg, and .gif. It is fully compatible with Windows operating systems.
How long is the actual operational lifespan of the laser source?
The high-quality fiber laser source features an industry-leading lifespan of over 100,000 hours. Under typical factory or workshop operating conditions, this equates to more than 8 to 10 years of reliable performance, offering a phenomenal return on investment (ROI).
