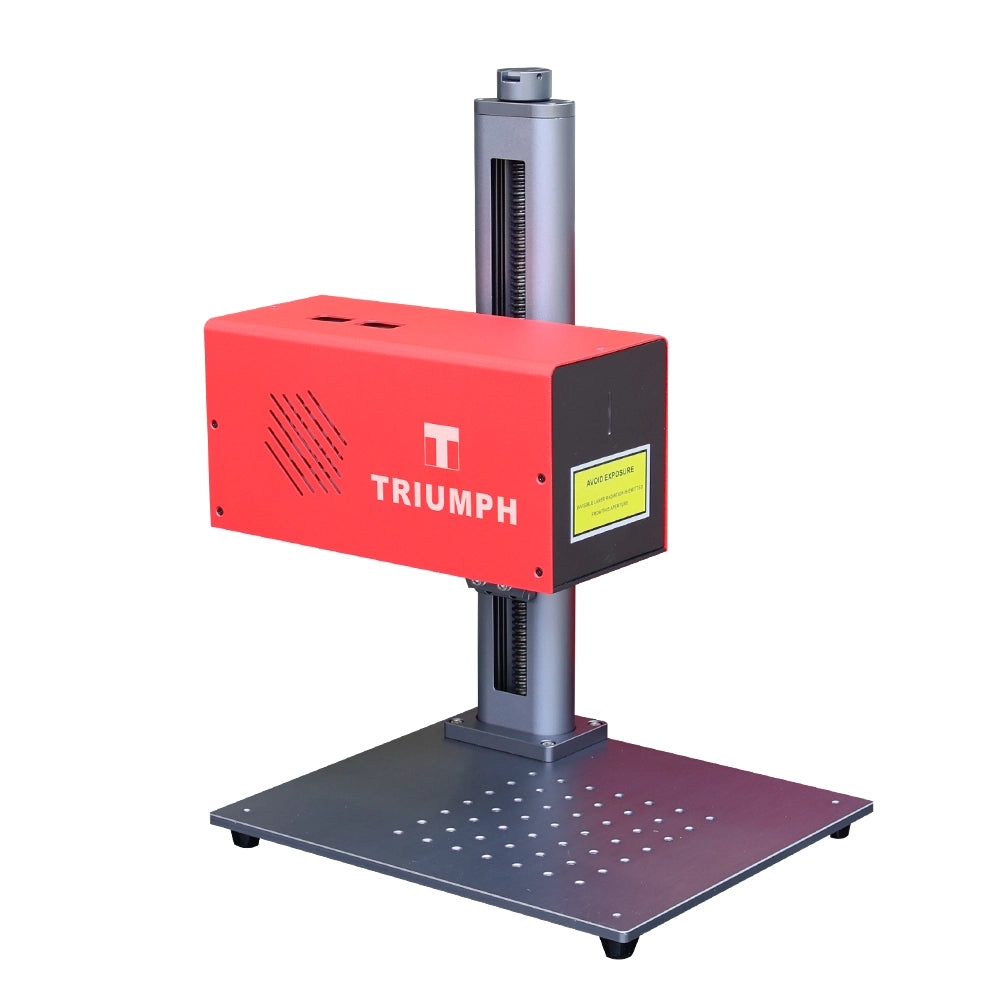

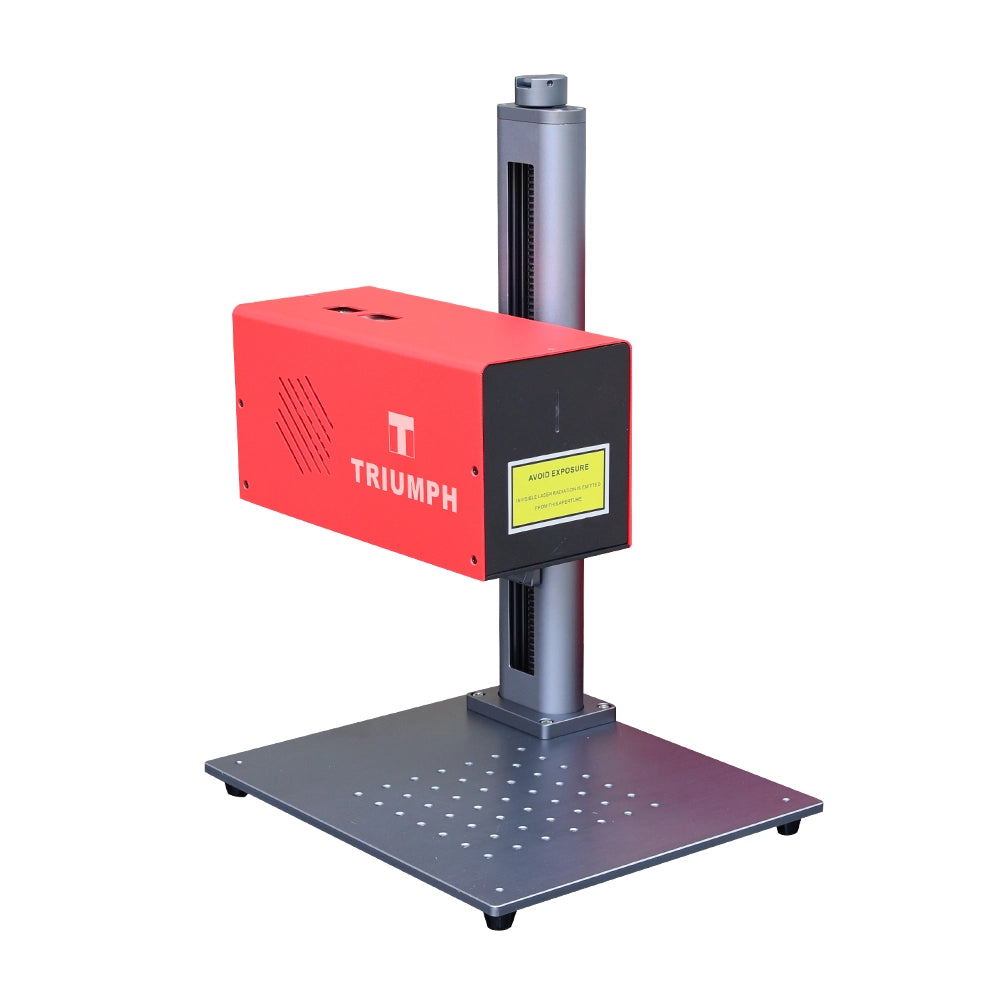

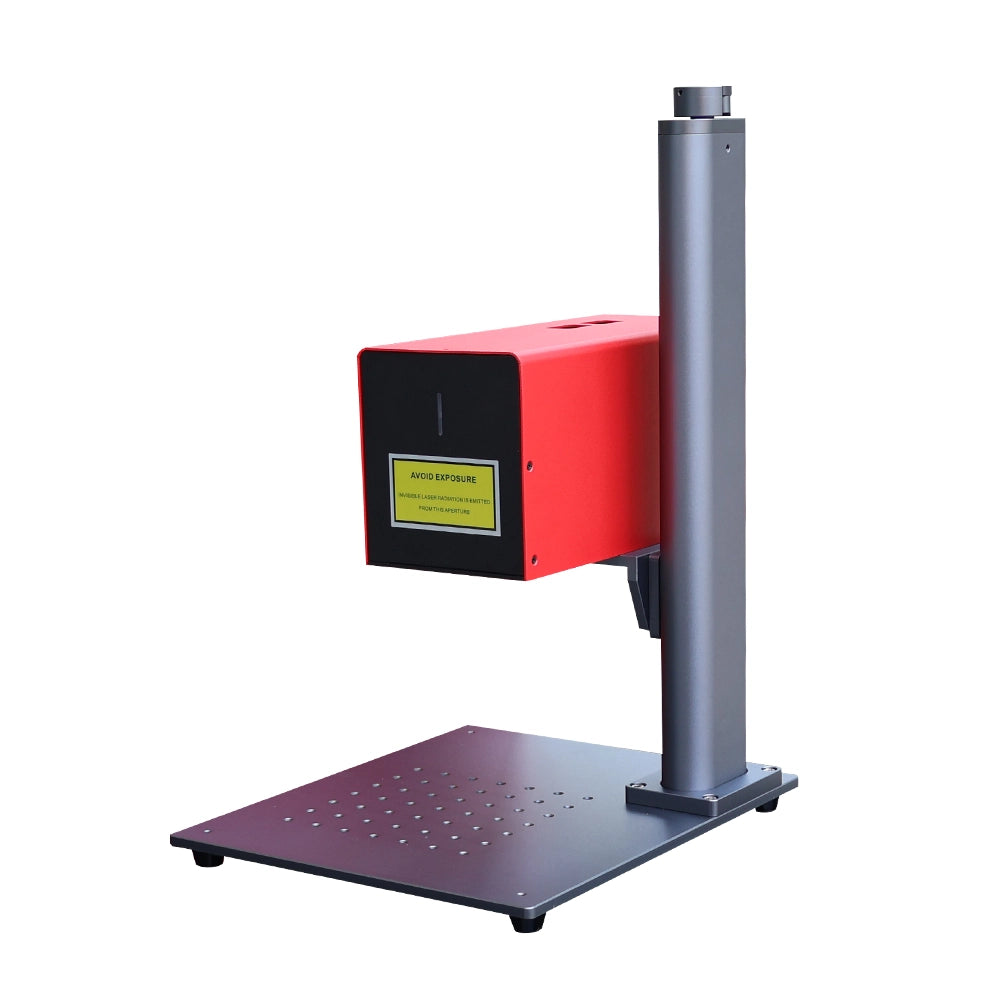

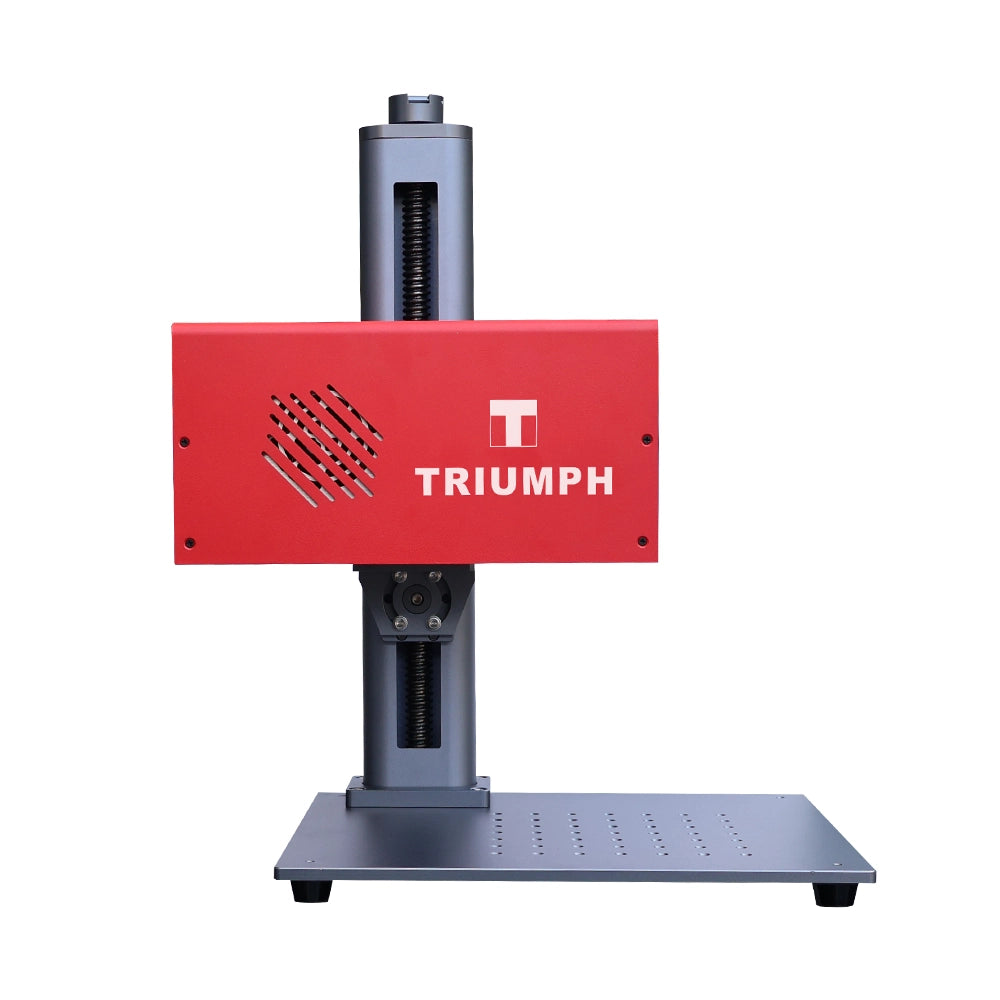

FT Series Laser Marking Machine For Metal Engraving
Unlock high-precision permanent engraving with our compact Desktop Fiber Laser Marking Machine. Available in 20W, 30W, and 50W configurations, this industrial engraving system delivers ultra-fast scanning speeds up to 10,000mm/s. Perfect for marking metals, plastics, and various industrial components with exceptional repeatability and zero maintenance requirements.
Product Demonstrations
Technical Parameters
| Model | FT-20 | FT-30 | FT-50 |
| Laser Power | 20W | 30W | 50W |
| Laser Wavelength | 1064nm | ||

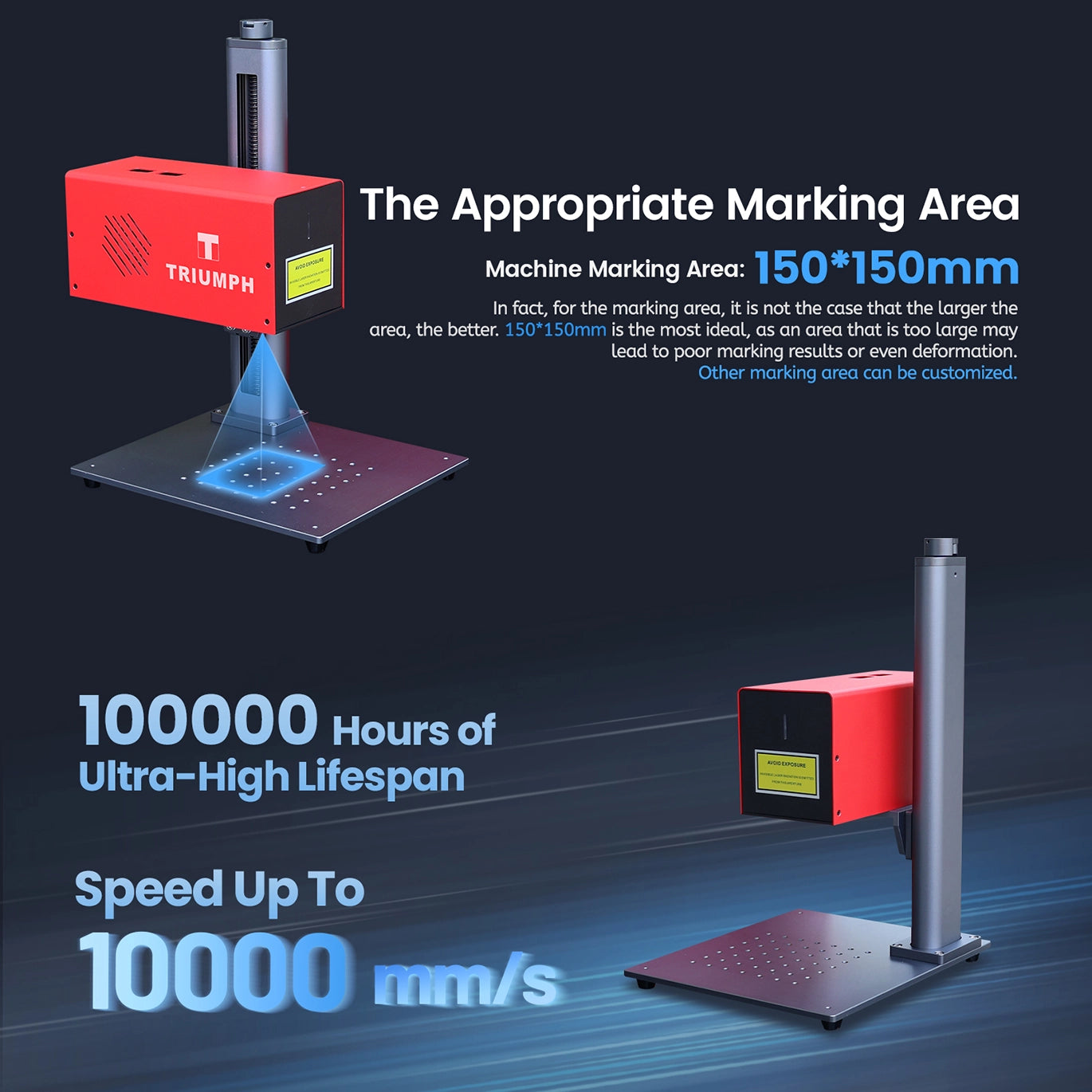

| Working Area | 150×150mm | ||
| Laser Frequency | 30-60kHz | ||
| Max. Engraving Depth | 0.015-0.5mm | 0.015-1mm | 0.015-2mm |
| Max. Engraving Speed | 10000mm/s | ||
| Positioning Accuracy | ±0.1μm | ||
| Repeatability | <0.001mm | ||
| Software | BslApp | ||
| Compatible Operating Systems | Windows XP/7/10/11 | ||
| Minimum Line Width | 0.02-0.04mm | ||
| Cooling Method | Air Cooling | ||
| Supported Files | .ai, .bmp, .svg, .dx, .dxf, .gif, .jpg, etc. | ||
| Laser Life | 100,000 hours | ||
| Warranty | 2 Years | ||
| Power Consumption | Max. 250W | Max. 350W | Max. 400W |
| Package Weight | 13kg | 18kg | 20kg |

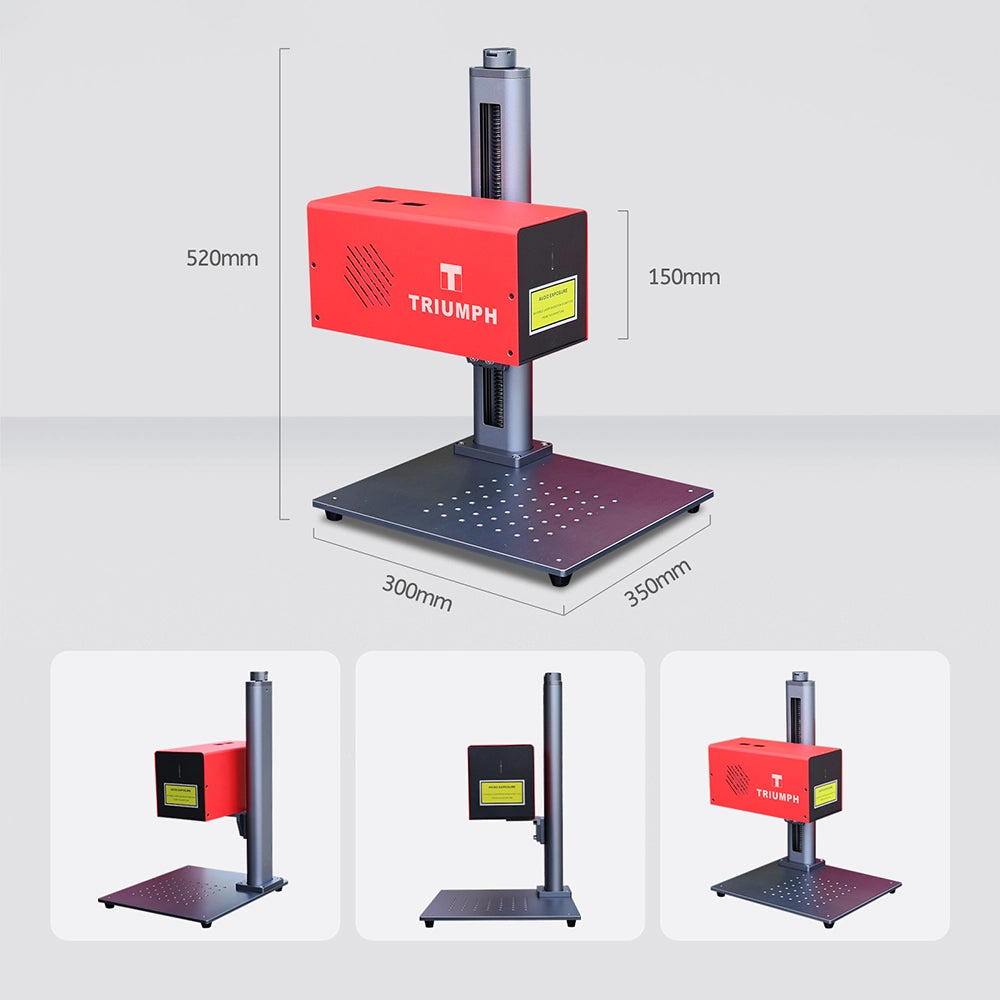

| Package Size | 58×46×30cm | ||
| Power Requirements | AC220V/50Hz Or AC110V/60Hz | ||
Frequently Asked Questions
What materials can this fiber laser marking machine engrave?
Fiber laser marking machines are primarily designed for metals and hard plastics. Common materials include:
- Stainless steel, carbon steel, aluminum, brass, copper, and iron
- Precious metals like gold and silver
- Engineered plastics such as ABS, PVC, and Nylon
How do I choose between 20W, 30W, and 50W power options?
- 20W: Best for high-precision surface marking, barcodes, and serial numbers on metals.
- 30W: Offers faster marking speeds and moderate deep engraving capabilities.
- 50W: The ideal choice for deep engraving, fast production cycles, and cutting thin metal sheets.
How do I find the correct focal length for marking?

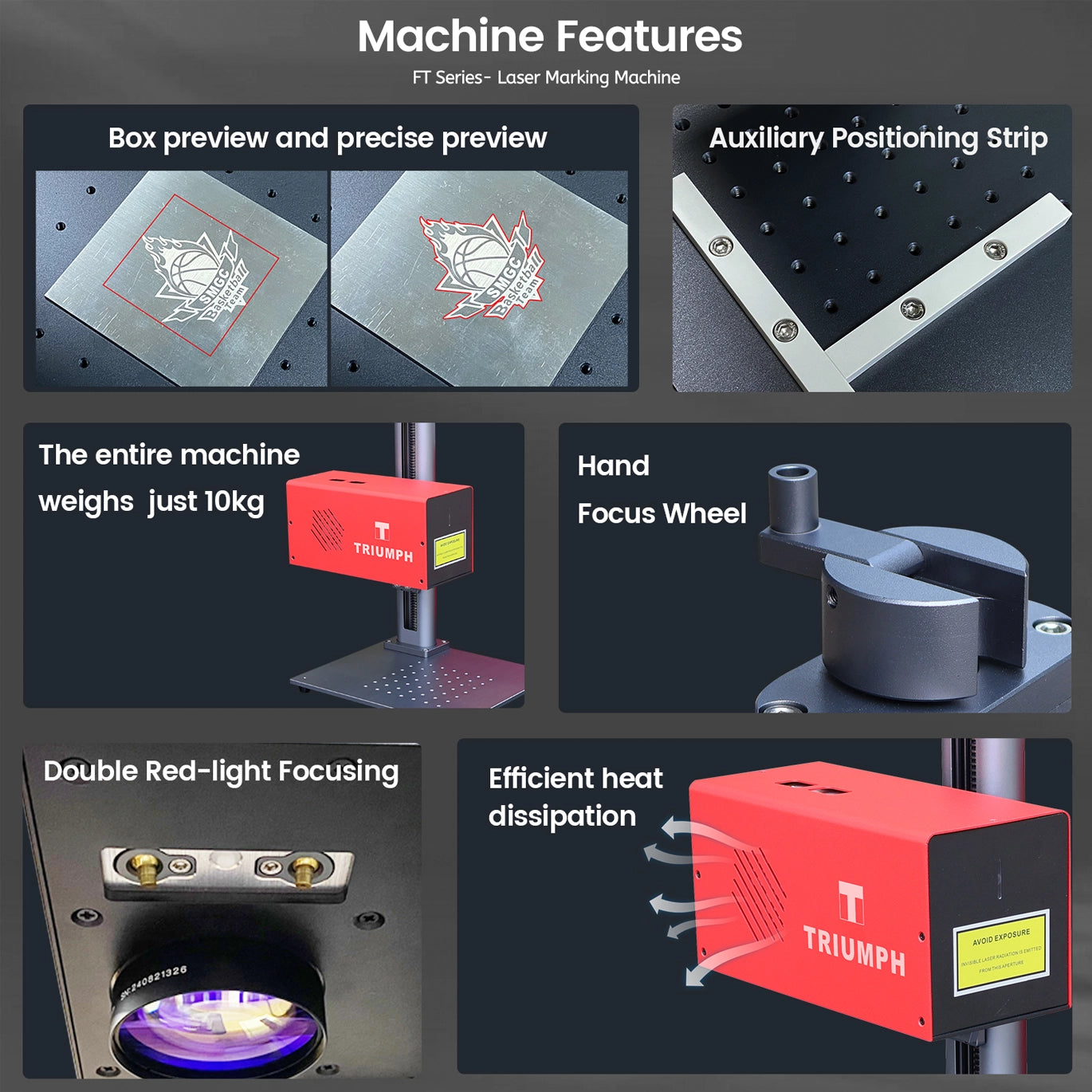

The machine is equipped with a dual red-light alignment system. You simply adjust the Z-axis lift handle until the two red dots overlap on the surface of your material. This ensures the laser is perfectly focused for the sharpest engraving results without manual measurements.
Does this machine require any consumables?
No, fiber laser marking machines do not require any consumables like inks, chemicals, or replacement tips, making them highly cost-effective for long-term operations.
What is the maintenance routine for the air cooling system?
The air cooling system is completely maintenance-free. You only need to ensure the machine environment is kept relatively clean and free of excessive dust blockages around the air vents.
What kind of warranty and life expectancy does it offer?
The machine includes a 2-year warranty, and the premium fiber laser source features a service lifespan of up to 100,000 hours.
