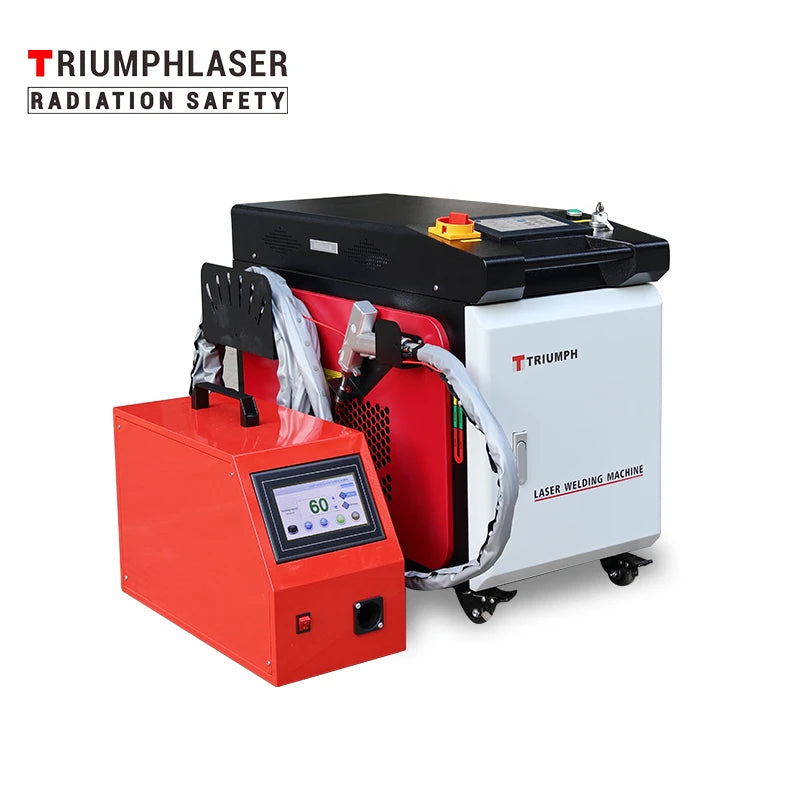

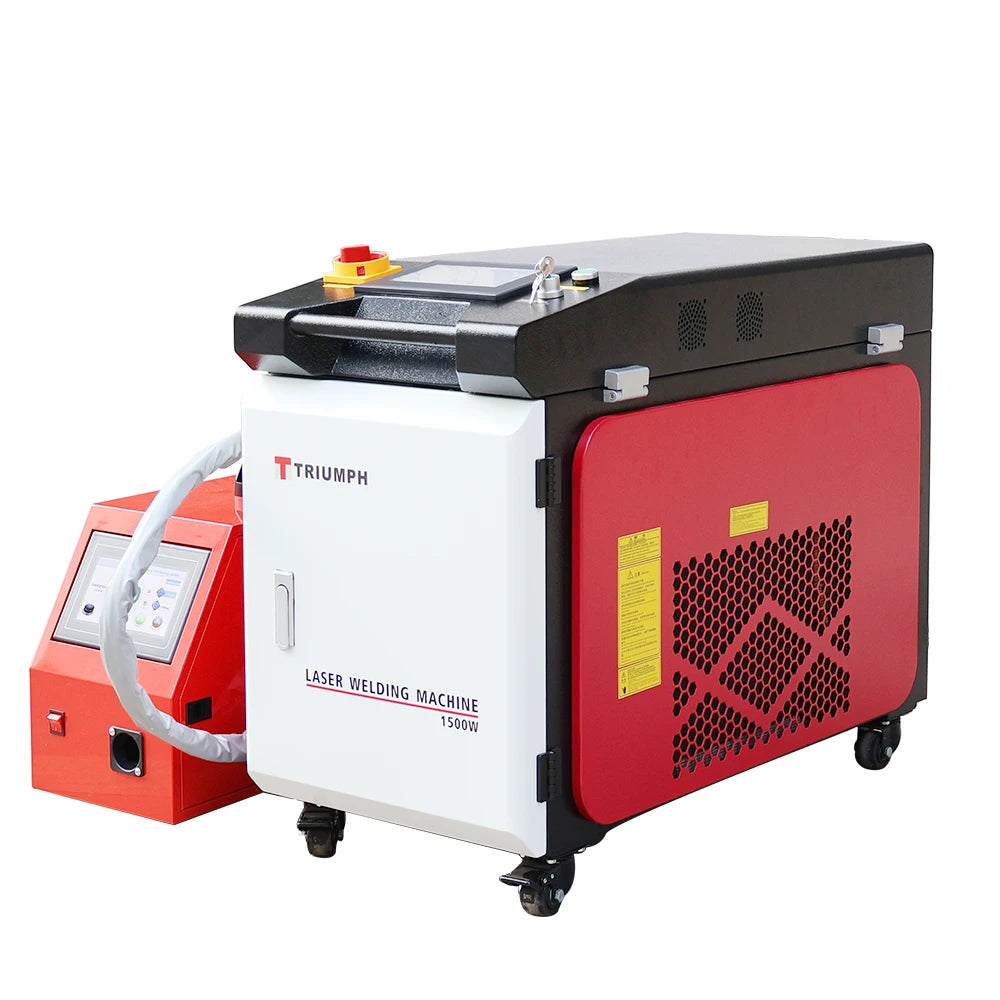

Triumph Medium Series 4-in-1 Handheld Laser Welding Machine (1500W/2000W)
Industrial Solution Combining High-Precision Laser Welding, Cutting, Surface Cleaning, and Weld Bead Cleaning for Seamless Metal Fabrication.
Product Overview
Handheld laser welding machine is designed to be lightweight and compact, making them easy to carry to different job sites or within a workshop. These machines are user-friendly and require minimal setup compared to traditional welding equipment. This makes them suitable for both professionals and beginners.
Handheld laser welding provides precise control over the welding process, allowing for fine and intricate welds in various materials. Handheld laser welding machines can often perform welding tasks faster than traditional methods, which can lead to increased productivity. Laser welding is generally safer for operators, as it reduces exposure to harmful fumes and radiation.
Advantages of the Handheld Laser Welding Machine
- Portability: The mini handheld welding machine is compact and lightweight, making it easy to carry and operate in various work environments.
- High Efficiency: The machine utilizes laser technology, which enables fast and precise welding, 4-10 times faster than traditional welding, leading to increased productivity and reduced welding time.
- Cost-effective: By improving welding efficiency and reducing processing time, the mini handheld welding machine helps to lower production costs and optimize resource allocation. It saves about 80%~90% electricity than argon arc welding.
- Ease of Use: The machine is designed with user-friendly touch screen controls and intuitive interfaces, making it easy for operators to learn and operate without extensive training.
- Versatility: The mini handheld welding machine is suitable for various materials, including metals and alloys, allowing for a wide range of welding applications in industries such as automotive, electronics, and jewelry.
- Flexibility: The machine offers flexibility in terms of welding positions and angles, allowing for welding in tight or difficult-to-reach spaces, improving accessibility and overall welding capabilities.
- Precise and Quality Welds: The laser technology used in the machine ensures precise and high-quality welds, resulting in strong and durable joints with minimal distortion or damage to the surrounding material.
- Safety Features: Multiple safety guarantees to protect the safety of operators and equipment.

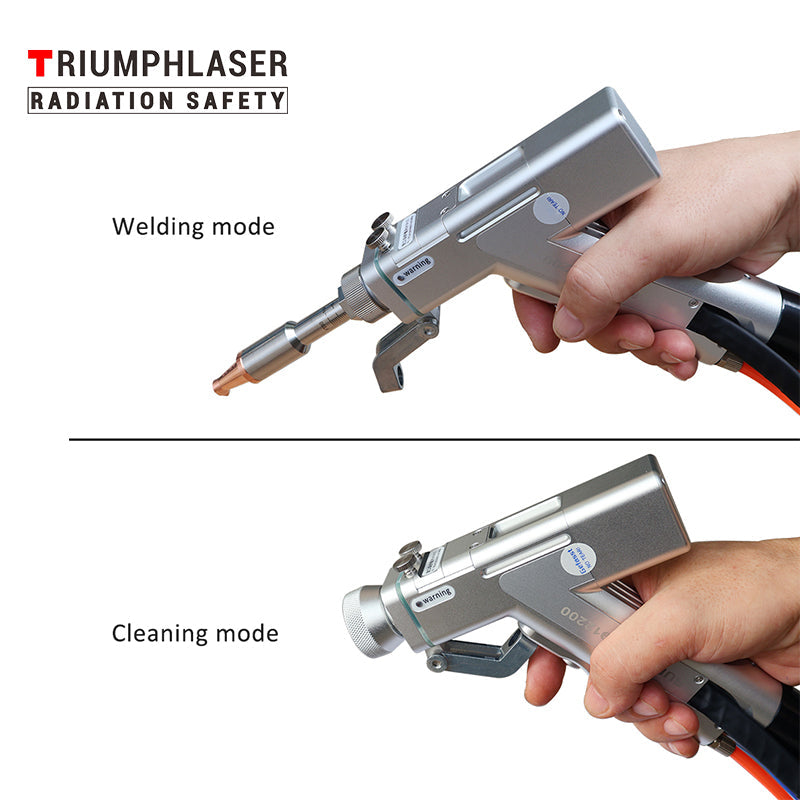

4 in 1 Multi-function
Laser Welding
The primary function is welding. It is designed to join materials together using a high-powered laser beam, ensuring a precise and efficient welding process.
Laser Cutting
Another capability of this tool is cutting. It can be used to cut materials with high precision, making it a versatile tool for various applications that require both welding and cutting.
Laser Cleaning
In addition to welding, this tool can also perform cleaning tasks. It can remove rust, contaminants, or unwanted material from the surface of the workpiece before or after welding, ensuring a clean and smooth welding surface.
Weld Seam Cleaning
Seam cleaning is a specific function related to welding. After welding, the tool can clean the welded seam to ensure a polished and finished appearance.
PLEASE NOTE: Welding is the primary function of this 4-in-1 system; cutting and cleaning serve as auxiliary features. If your operations mainly require large-scale or heavy-duty surface preparation, we highly recommend investing in our dedicated Laser Cleaning Machine for optimal efficiency.
Application of Handheld Laser Welding Machine
The handheld laser welding machine has a wide range of applications across various industries. Some common applications include:
- Automotive Industry: The mini handheld laser welding machine is used for welding car body components, exhaust systems, fuel tanks, and other automotive parts, providing precise and reliable welds.
- Electronics Industry: It is used for welding electronic components, such as connectors, circuit boards, sensors, and batteries, ensuring high-quality and durable connections.
- Jewelry Making: The mini handheld laser welding machine is used in the jewelry industry for intricate welding tasks, such as repairing jewelry, attaching clasps, and joining delicate components without damaging the surrounding areas.
- Medical Device Manufacturing: It is employed in the production of medical devices, such as surgical instruments, implants, and dental tools, enabling precise and controlled welding for critical applications.
- Aerospace Industry: The mini handheld laser welding machine is utilized for welding aerospace components, including turbine blades, engine parts, and structural elements, ensuring strong and reliable joints with minimal heat-affected zones.
- Metal Fabrication: It finds applications in general metal fabrication processes, such as joining sheet metal, pipes, and tubes, enabling efficient and accurate welding for various structural and decorative purposes.
- Tool and Die Making: The mini handheld laser welding machine is used for repairing molds, dies, and tooling, enabling localized welding and minimizing the need for extensive rework or replacement.
- Art and Design: It is utilized by artists and designers for creating metal sculptures, customized metal artwork, and decorative metal pieces, providing precise control over welding and minimizing distortion.
- Electronics Repair: The mini handheld laser welding machine is used for repairing electronic devices, such as smartphones, tablets, and laptops, enabling precise welding on small components and connectors.
- Precision Manufacturing: It finds applications in precision manufacturing processes, including micro-welding tasks, such as welding tiny electronic components, sensors, and optical devices.
Application Scenarios
Laser Welding VS Traditional Welding
| PROJECT | TIG / MIG | Triumph laser welding machine |
| Labor cost | Difficult to recruit and high salary. | Simple operation and low labor cost. |
| Disease | Frequent occupational diseases and serious physical injuries. | Less radiation, only need protective glasses to filter strong light. |
| Speed | Slow speed, low efficiency. | 4-10 times faster than traditional welding |
| Hot zone | Large | Small |
| Deformation | Easy to deform | Not easy to deform |
| Quality | The weld is thick and irregular, and needs polishing | Fine and beautiful welds, high welding strength |
| Damage | There is air hole and it is easy to weld through. | Welding is uniform and consistent. |
| Application | Limited by consumables | Wide application range |
| Master | Professional welders are required. | 30 minutes of learning can be mastered skillfully. |
System Simplicity Intelligent Machining
The new hand-held laser welding machine adopts industrial LED touch screen and intelligent operating system, which supports simple operation mode, easy to learn and easy to operate. Basic training can be learned in 30 minutes, effectively reducing labor costs.

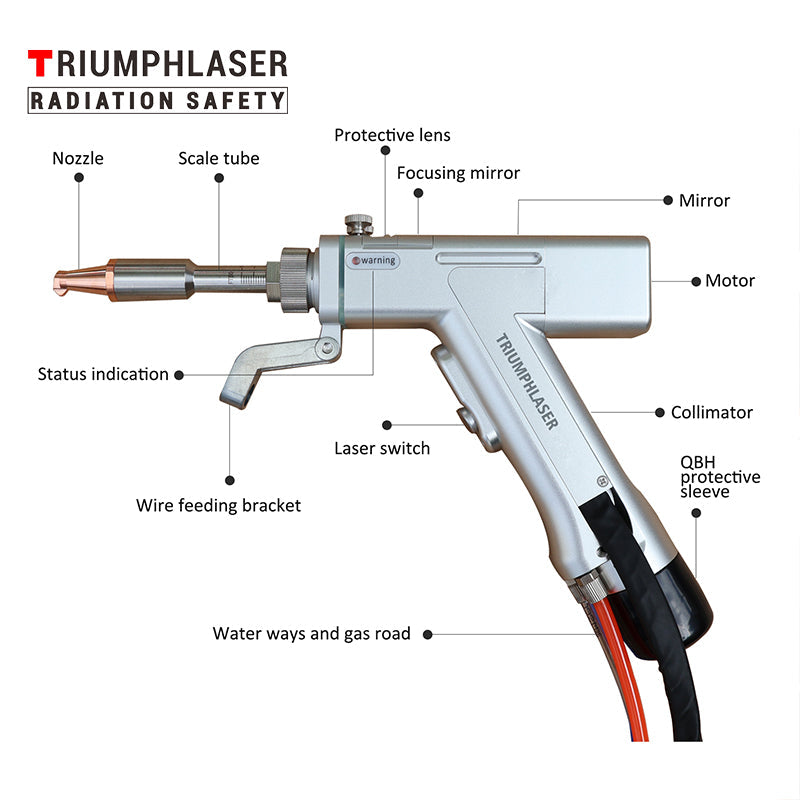

Handheld Laser Welding Head
A handheld laser welding head is a compact and portable device used for precision welding applications. These devices are designed for ease of use and maneuverability in various welding scenarios.
Safety Note: Personnel entering the welding area must wear all personal protective equipment, including heat-resistant and flame-retardant gloves, hats, clothing and accessories, to ensure that the working area is free of flammable and explosive substances.
Welding Copper Nozzles
Laser Welding Demonstration Videos
Technical Parameters
| Laser wavelength | 1080nm |
| Working mode | Continuous & pulse |
| Output power | 1500W / 2000W |
| Input voltage | 220V |
| Swing width | 0 ~ 5mm |
| Swing frequency | 1 ~ 30Hz |
| Welding gun interface | QBH |

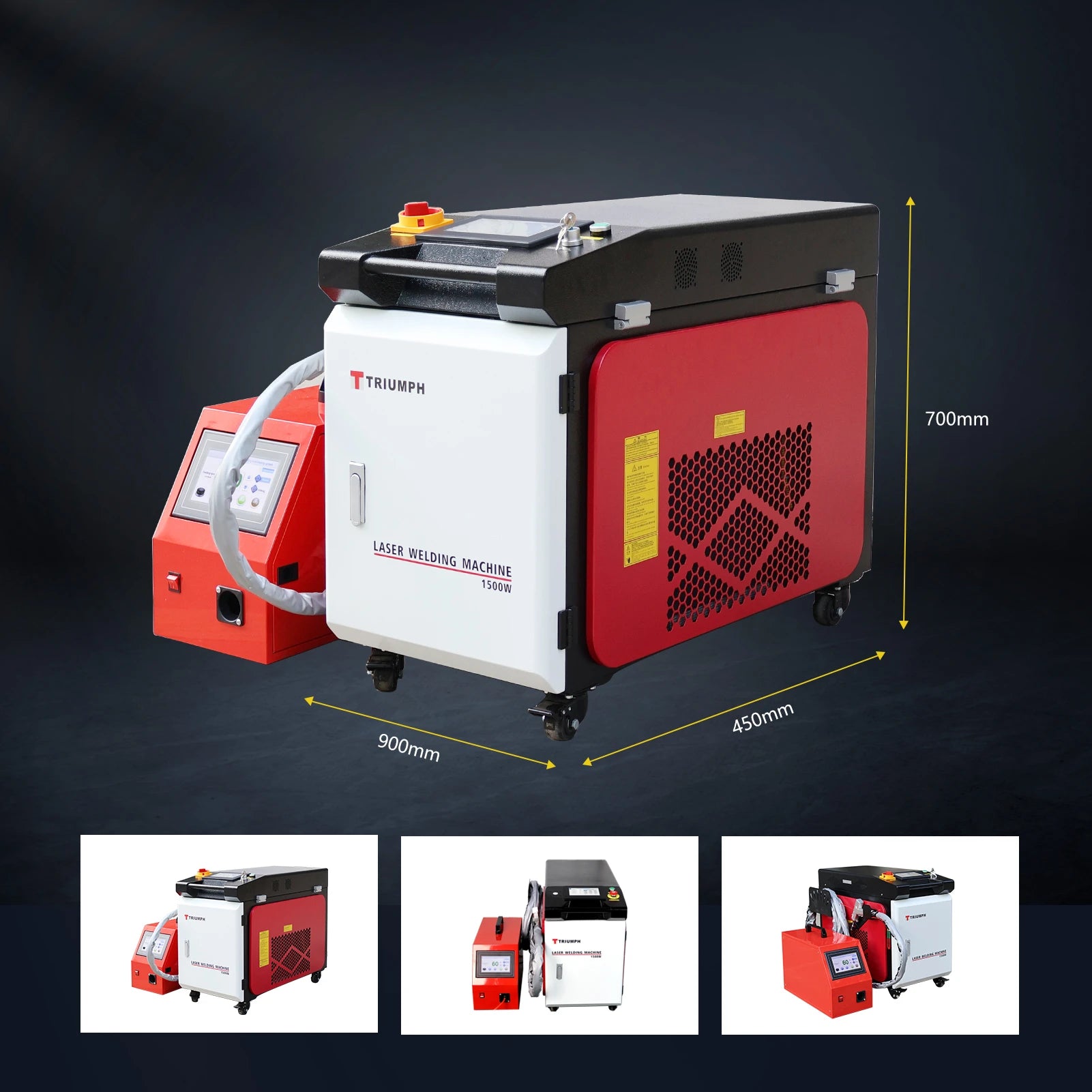

| Size (mm) | 900 * 450 * 700mm |
| Net weight | 110kg / 130kg |
Why Choose Triumphlaser
20+
Years Manufacturing Experience
100+
Countries Served
100,000h
Laser Source Lifespan
24/7
Remote Technical Support
Local Warehouse
USA / Canada / Mexico Delivery
OEM / ODM
Customization Available
Packing List
Access Product Resources
Frequently Asked Questions
What is the power of this laser welding machine?
This model is available in two configurations: 1500W and 2000W.
Is it easy for beginners?
Yes. The machine features:
- An intuitive touchscreen control system
- Preset welding parameters
- User-friendly interface
- Minimal training requirements
Most operators can become proficient within a few hours.
Do you support worldwide shipping?
Yes, we ship globally and provide overseas warehouse delivery.
Does the machine support multiple functions?
Yes. the machine support 4-in-1 functionality, including:
- Laser Welding
- Laser Cleaning
- Laser Cutting
- Weld Seam Cleaning
What are the power and voltage requirements?
- Power Supply: Single-phase 220V , 50/60Hz
- 1500W total Power Consumption: Approximately 6–8 kW
- 2000W total Power Consumption: Approximately 8–10 kW
What cooling system does the machine use?
Water cooling
What shielding gases are recommended?
Common shielding gases include:
- Nitrogen (N₂): Clean and oxidation-free welds
- Argon (Ar): High-quality and stable welding
- Compressed Air: Cost-effective for certain applications
What is the expected lifespan of the laser source?
The fiber laser source has a service life of up to 100,000 hours, ensuring long-term reliability and low maintenance costs.
How thick a material can it weld?
Taking stainless steel as an example,
1500W can weld up to 4mm thick.
2000W can weld up to 5mm thick
What warranty do you offer?
The machine comes with a 2-year warranty.
Consumable parts such as laser protective lenses and focusing lenses are not covered.
