Triumph Fiber Laser F-theta Scan Lens for Fiber Laser Marking Machine
Couldn't load pickup availability
Precision F-Theta Scanning Lens for 1064nm Fiber Laser Galvo System
Optimize your fiber laser marking and engraving setup with this premium 1064nm F-Theta scanning lens. Engineered for galvanometer scanning systems, it delivers flat-field image focus across the entire marking area with minimal optical distortion. Featuring ultra-durable antireflective AR coatings and high damage threshold glass, this lens ensures maximum energy throughput and ultra-fine spot size for accurate industrial laser processing.
Optical Specifications Overview
| Parameter | Technical Specification |
|---|---|
| Operating Wavelength | 1064 nm (Standard Fiber Laser Band) |
| Optical Substrate | High Transmittance Optical Glass / Fused Silica |
| Coating Type | Double-Sided High Damage Threshold AR Coating |
| Transmittance Rate | ≥ 99.5% @ 1064nm |
| Thread Interface | Standard M85×1 / M39 Thread Mount |
Key Optical & Performance Features
Maintains consistent focal spot size and energy distribution from the center to the extreme edges of the marking field.
Advanced anti-reflection coatings reduce optical power loss, preventing internal reflections and thermal lens distortion.
Standardized threaded mounting allows easy retrofitting onto most fiber laser marking heads and scanning galvos.
Installation, Maintenance & Identification Guide
Frequently Asked Questions

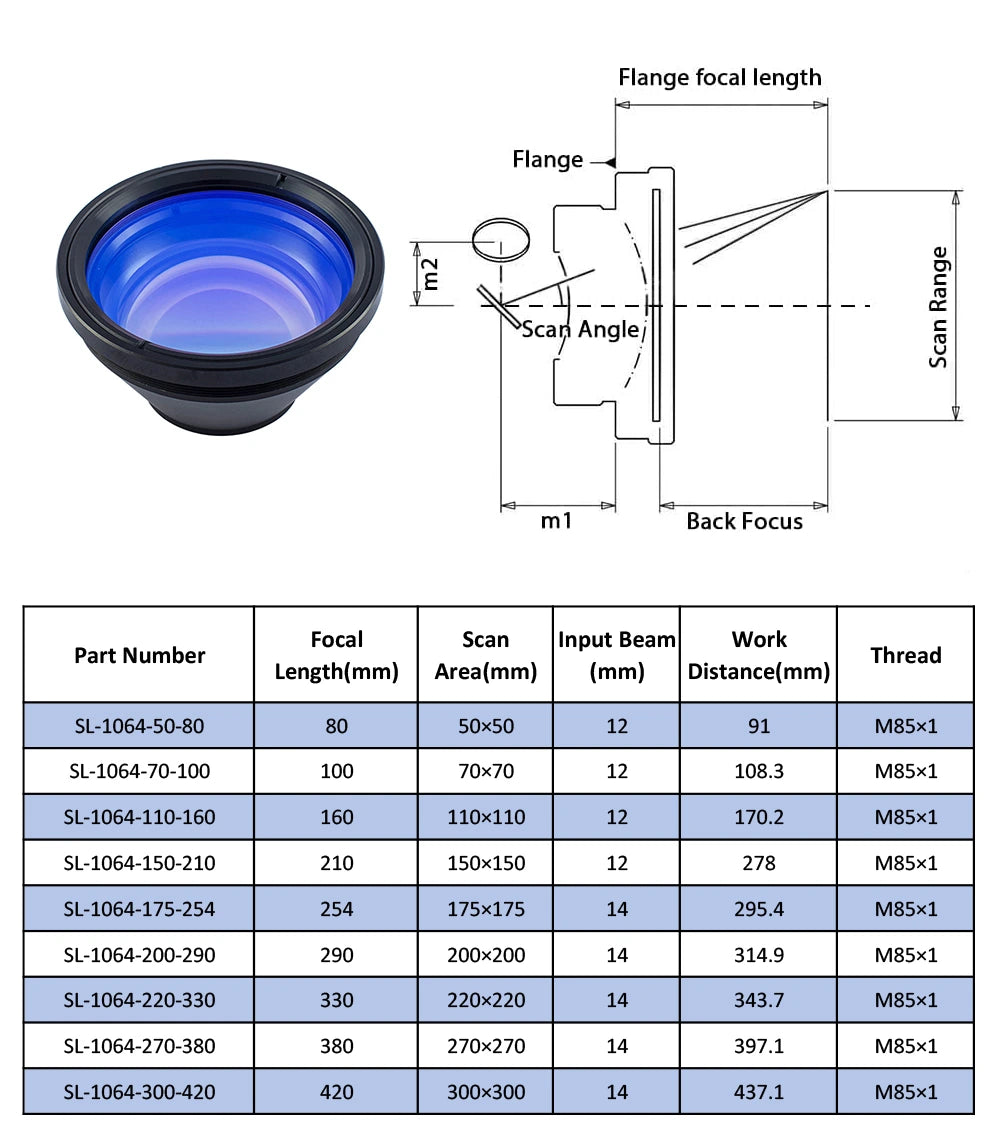

How do I select the right focal length (F-number) for my marking area?
Shorter focal lengths (e.g., F=160mm) yield a smaller laser focal spot size with higher power density, ideal for fine engraving. Longer focal lengths (e.g., F=254mm or F=330mm) provide a larger marking field for big workpieces.
How should I safely clean the optical surface of the F-Theta lens?
Use an air blower to remove dust first. Then, gently wipe the optic in one direction using lens cleaning tissue moistened with high-purity anhydrous alcohol. Never scrub back and forth to avoid scratching the AR coating.
Is this lens compatible with CO2 or UV laser marking machines?
No, this specific lens is optimized for the 1064nm infrared wavelength used by fiber lasers. For CO2 (10.6μm) or UV (355nm) lasers, dedicated wavelength-matched lenses must be used.
